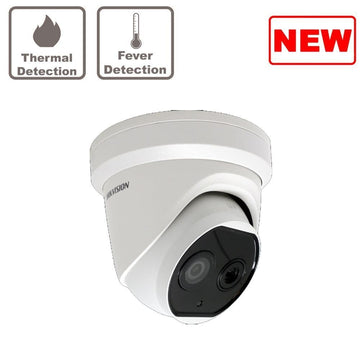

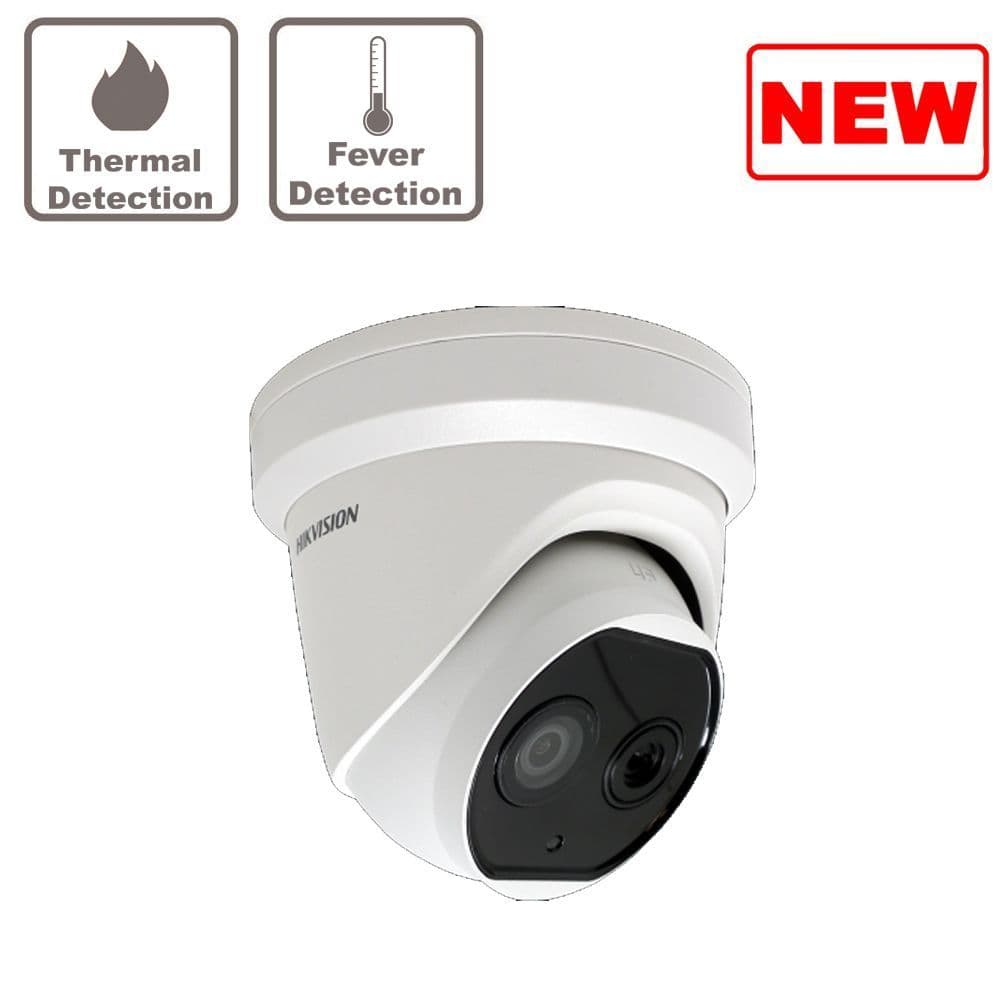

Fever Screening Thermographic Turret Camera
Hikvision DS-2TD1217B Thermographic Turret Body Temperature Measurement Camera is able to measure an object's temperature at a high accuracy in real time. It is capable of discovering and tracking people with a higher body temperature in a crowded public area. It can be widely used in places such as customs, airports, schools and hospitals for inspection and quarantine purposes.
This is a special order item and is non-cancellable & non-returnable. For delivery date and further information please don't hesitate to give us a ring. Thank you.
Features
- 160 × 120 resolution in thermal channel, high sensitivity sensor.
- Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
- Reliable temperature exception alarm function
-
3D DNR, image detail enhancement
-
Audio alarm
Specification
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution160 × 120 (the resolution of output image is 320 × 240)
- Pixel Interval17 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 40 mK (@ 25 °C,F#=1.1)
- Focal Length3.1 mm
- IFOV5.48 mrad
- Field of View50° × 37.2° (H × V)
- Min. Focusing Distance0.2 m
- ApertureF1.1
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution2688 × 1520
- Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
- Shutter Speed1s to 1/100,000s
- Focal Length4 mm
- Field of View84° × 44.8°(H × V)
- Aperture (Range)F2.3
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 15 m
- IR Intensity and AngleAutomatically adjusted
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light used as the visual alarm, flashing frequency adjustable
- Audio alarmYes. 6 audio alarms are supported to cover all kinds of alarm.
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub Stream
Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:
60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
- Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
- APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input1-ch inputs (0-5 VDC)
- Alarm Output1-ch relay outputs, alarm response actions configurable
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
- General
- Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)
- Power Consumption
12 VDC ± 20%: 0.5 A, max. 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
- Working Temperature/HumidityTemperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 95% or less
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
- Weight940 g (2.07 lb)
- Detection Range Table/Wide Range Coverage
- Detection Range for Humans (1.8×0.5m)91 m
- Detection Range for Vehicles (4.0×1.4m)280 m
- Recognition Range for Humans (1.8×0.5m)23 m
- Recognition Range for Vehicles (4.0×1.4m)70 m
- Identification Range for Humans (1.8×0.5m)11 m
- Identification Range for Vehicles (4.0×1.4m)35 m
- Detection Range Table/Smart Function Range
- VCA Range for Humans15 m
- VCA Range for Vehicles45m
- Temperature Measurement Range for Object (2m×2m)66 m
- Temperature Measurement Range for Object (1m×1m)33 m
- Fire Detection Range for Object (2m×2m)180 m
- Fire Detection Range for Object (1m×1m)90 m
