DS-2DP3236ZIXS-D/440/T2 HIK PanoVu 8 x 2.8mm Lens 360° w/ PTZ 6-240mm 40x 36VDC
DS-2DP3236ZIXS-D/440/T2 HIK PanoVu 8 x 2.8mm Lens 360° w/ PTZ 6-240mm 40x 36VDC
DS-2DP3236ZIXS-D/440/T2 HIK PanoVu 8 x 2.8mm Lens 360° w/ PTZ 6-240mm 40x 36VDC

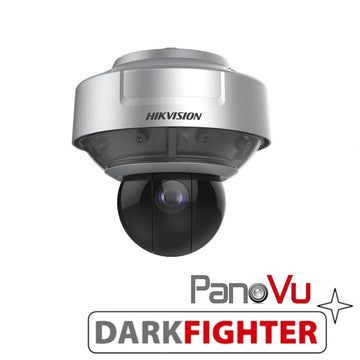

Hikvision DS-2DP3236ZIXS-D/440/T2 360° Stitched 32 MP PanoVu Camera with PTZ is able to capture panoramic images as well as close-up images, offering both panorama and details. The panoramic images are captured by eight sensors, which could realize 360° panorama monitoring.
The integration of two cameras can locate the details fast over expansive area. Furthermore, with its advanced video analysis and multiple targets tracking algorithm, PanoVu camera also features a wide range of smart functions for multiple targets within the panoramic view filed, including intrusion detection, line crossing detection, region entrance detection, and region exiting detection.
The camera could also output alarm signals to link the PTZ for tracking to improve the security efficiency. This product is suitable for the application scenarios in which expansive monitor and detail capture are both required, such as airport, station, stadium, playground, scenic area, and public square.
This is a special order item and is non-cancellable & non-returnable. For delivery date and further information please don't hesitate to give us a ring. Thank you.
Features
- Panoramic Camera
- Eight 1/1.8" 4 MP progressive scan CMOS
- Up to 2 × 5520 × 2400 resolution @30fps
- Horizontal field of view: 2 × 180°; Vertical field of view: 85°
- Min. illumination: Colour: 0.0005 Lux @(F1.6, AGC ON); B/W: 0.0001 Lux @(F1.6, AGC ON)
- Supports people density detection in panoramic channel
- Tracking PTZ Camera
- 1/1.8" 4MP Progressive Scan CMOS
- Up to 2560 × 1440 resolution @30fps
- 40 × Optical Zoom, 16 × Digital Zoom
- Pan and tilt range: 360° (Pan), -15° to 90° (Tilt)
- Min. illumination Color: 0.0005 Lux @(F1.2, AGC ON) B/W: 0.0001 Lux @(F1.2, AGC ON) 0 Lux with IR
- IR distance: 250 m
Specification
- Camera
- Image Sensor[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
- Min. Illumination
[Panoramic channel] color: 0.0005Lux @ (F1.6, AGC ON), B/W: 0.0001Lux @(F1.6, AGC ON), 0 Lux with IR;
[PTZ channel] color: 0.0005Lux @ (F1.2, AGC ON), B/W: 0.0001Lux @(F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1 to 1/30000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom[PTZ channel] 40x optical, 16x digital
- Max. Resolution5520 × 2400
- Lens
- FocusAuto, semi-auto, manual
- Focal Length[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240mm
- Zoom Speed[PTZ channel] approx. 4.4 s
- FOV
[Panoramic channel]
Horizontal field of view: 180°
Vertical field of view: 85°
[PTZ channel]
Horizontal field of view: 56.6° to 1.8° (Wide-Tele)
Vertical field of view: 33.7° to 1.0° (Wide-Tele)
Diagonal field of view: 63.4° to 2.0° (Wide-Tele)
- ApertureF1.2
- Illuminator
- Supplement Light RangeIR Distance: up to 250 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)0-360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
- Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
- Presets300
- Patrol Scan8 patrols
- Pattern Scan4 pattern scans
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream
[Panoramic channel]
50Hz: 25fps (5520 × 2400 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2)
60Hz: 30fps (5520 × 2400 × 2, 3840 × 1680×2, 2784 × 1200 × 2)
[PTZ channel]
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
[Panoramic channel]
50Hz: 25fps (2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2)
60Hz: 30fps (2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2)
[PTZ channel]
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
[Panoramic channel]
50Hz: 25fps (4096 × 1800 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2, 2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2),
60Hz: 30fps (4096 × 1800 × 2, 3840 × 1680 × 2, 2784 × 1200 × 2, 2048 × 896 × 2, 1280 × 560 × 2, 704 × 320 × 2)
[PTZ channel]
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz, PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
- Network
- Network StorageNAS (NFS, SMB/ CIFS)
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- APIOpen-ended API, ONVIF (Profile S, Profile G, Profile T), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users, 3 user levels: administrator, operator, and user
- Smooth StreamingYes
- SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserIE8+
- Image
- Day/Night SwitchDay, night, auto, scheduled-switch
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)120 dB WDR
- DefogOptical defog
- Image StabilizationEIS
- Regional ExposureYes
- Regional FocusYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters SwitchYes
- Privacy Mask
[Panoramic channel] 8 programmable polygon privacy masks, mask color configurable
[PTZ channel] 24 programmable polygon privacy masks, mask color configurable
- SNR≥ 55 dB
- Interface
- Ethernet InterfaceRJ45, Self-adaptive 10M/100M/1000M Ethernet port
- Fiber OpticalFC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Event
- Smart Event
[Panoramic Channel]
Intrusion detection, line crossing detection, region entrance detection, region exiting detection
[PTZ Channel]
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Smart TrackingManual tracking, auto-tracking, panorama tracking
- Alarm LinkagePreset, patrol scan, pattern scan, memory card video recording, alarm output, send email, notify surveillance center, upload to FTP
- Deep Learning Function
- Face Capture
[PTZ Channel]
Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
- People Density
[Panoramic Channel]
Support detecting the level of people density in the configured area
- General
- Power36 VDC, max. 150 W
- Operating ConditionTemperature: -40°C to 60°C (-40°F to 140°F), Humidity: ≤ 95%
- DemistYes
- MaterialADC12
- DimensionΦ391.8 mm × 400.5 mm (Φ 15.43" × 15.77")
- WeightApprox. 18 kg (39.68 lb)
