Card Reader Module DS-KD-M Video Intercom Hikvision
Regular price
£42.99
Sale price
£42.99
Regular price
Unit price
Information
Quick Overview

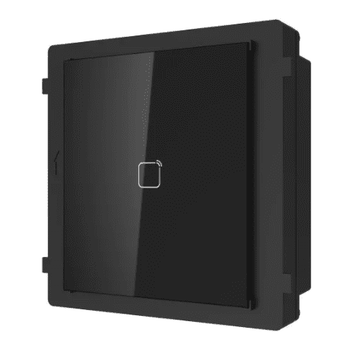

The Hikvision DS-KD-M is a video intercom card reader module and is part of the 2nd generation of video intercom systems. This allows users to open & unlock the door by swiping their card.
It can be installed by flush mounting or surface mounting, and is powered by DS-KD8003-IME1, by 12V DC using a maximum of 2W.
This module is operated by MiFare cards, with dimensions of 98.5mm(L) × 100mm(W) × 33.7mm(H) making it a great size, its not too big so it stands out too much but its not too small so users struggle to use it.
With back light compensation (BLC), a working temperature of -40°C to 60°C, and IP65 weather-proof housing, this is perfect for outdoor use.
- Supports unlock the door via swiping cards
- Supports issuing cards
- Backlight compensation
- Easy to and extend
Specification
- System parameters
- Operating systemEmbedded Linux operation system
- ROMNot supported.
- RAMNot supported.
- CPUEmbedded MCU Processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens/
- Resolution/
- FOV/
- WDR/
- Supplement light/
- Video compression standard/
- Audio parameters
- Audio compression standardNot supported.
- Audio input/
- Audio output/
- Audio compression bitrateNot supported.
- Audio quality/
- Volume adjustmentNot supported.
- Capacity
- User capacity/
- Face capacity/
- Card capacity/
- Linked network camera capacity/
- Network parameters
- Communication protocolNot supported.
- Wired network/
- Wi-Fi standard/
- Bluetooth version/
- 3G/4G standardNot supported.
- Device interfaces
- Alarm input/
- Network interface/
- TAMPERNot supported.
- Exit button/
- RS-4851
- USB/
- WiegandNot supported.
- TF card/
- Alarm output/
- Lock control/
- Door contact input/
- Power interface1
- Performances
- Multi-factor authentication/
- General
- Button/
- InstallationFlush Mounting, Surface Mounting
- Indicator/
- Weight
With package: 421 g
Without package: 160 g
- Protective levelIP65
- Working temperature-40° C to +55° C(-40° F to 131° F)
- Working humidity10% to 95%
- Dimensions98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")
- Battery/
- Application environmentOutdoor
- Power consumption0.8 W
