C3W EzGuard With Two Way Audio, Strobe Light & Sound
C3W EzGuard With Two Way Audio, Strobe Light & Sound
Active light and sound alarms for enhanced protection
Upon detection of suspicious activity,the camera activates pre-emptive defense and send out light and sound alarms to deter intruders,nipping potential danger in the bud. With a sound alarm that can reach up to 100 dB, all areas under surveillance are effectively covered.

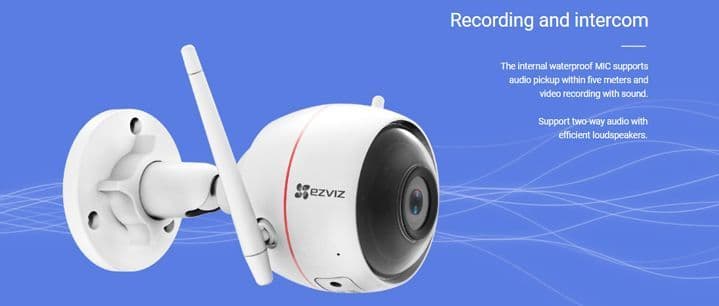

Recording and intercom
The internal waterproof MIC supports audio pickup within five meters and video recording with sound. Support two-way audio with efficient loudspeakers.
Two-way audio with HiFi quality
Integrated with professional de-noising algorithm to filter background noise for enhanced voice quality.
External powerful dual antenna ensure reliable wireless transmission
Remote transmission with strong penetration and anti-interference capabilities
EZVIZ provides smart home security systems through our versatile cameras and cloud-based platform. The intelligent and intuitive products from EZVIZ enable customers to see, capture, share and protect whats valuable to them.
| C3W | ||
|---|---|---|
| Model | name | CS-CV310-A0-1B2WFR |
| Camera | Image sensor | 1/2.7Progressive Scan CMOS |
| Minimum illumination | 0.02 lux @(F2.0,AGC ON) ,0 Lux with IR | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 2.8mm@ F2.2, Horizontal angle: 103° Diagonal angle: 118° 4mm@ F2.0, Horizontal angle: 87° Diagonal angle: 104° 6mm@ F2.0, Horizontal angle: 54° Diagonal angle: 62° | |
| Lens Mount | M12 | |
| Day & Night | IR cut filter | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Compression | Video Compression | H.264 |
| H.264 Type | Main Profile | |
| Video Bit Rate | HD; balance; and fluency. Adaptive bit rate. | |
| Image | Max. Resolution | 1920×1080/1280×720, support dual-stream |
| Frame Rate | 50Hz @ 25fps, 60Hz @ 30fps; adaptive frame rate of network transmission | |
| Image setting | Brightness, contrast, saturation, etc. (Configure via EZVIZ Studio) | |
| BLC | Support | |
| Network | Smart Alarm | Intelligent motion detection |
| One-key configuration | Smart Config (Wi-Fi One Push Configuration) | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| General Function | Flicker filter, dual-stream, heart beat, mirror image, password protection, watermark | |
| Interface | ||
| Storage | Support Micro SD cared (Max. 128GB) | |
| Interface | Wired network | A RJ45 Ethernet Port, adaptive rate of 10/100M |
| Wi-Fi | Standard | IEEE802.11 b/g/n |
| Frequency Range | 2.4GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Support 20MHz | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps | |
| General | Operating Conditions | (-30ºC ~ 60ºC ), humidity 95% or less ( non-condensing) |
| Power Supply | DC 12V±10% | |
| Power Consumption | Max. 6W | |
| IP Grade | IP66 | |
| IR Range | Max. 30 meters | |
| Dimensions (mm) | 150.44 x 85.80 x 71.64 | |
| Weight (g) | 326g | |
