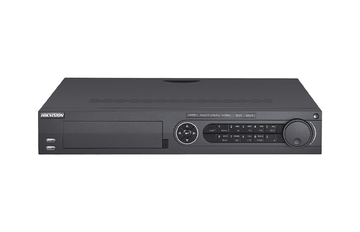

8MP Lite TVI & 12MP IP DS-9016HUHI-K8 HIKVision 16CH Analogue/TVI video, 32CH IP Max & 16CH Audio

8MP Lite TVI & 12MP IP DS-9016HUHI-K8 HIKVision 16CH Analogue/TVI video, 32CH IP Max & 16CH Audio

16-ch analogue/Upto 5MP TVI/AHD, Upto 32ch IP video input at 12MP, 16-ch audio input. 2-ch audio output. HDMI, VGA & CVBS output. 8 SATA interfaces, 2*USB2.0. RS485, 320Mbps inbound bandwidth, Alarm I/O 16/8, 2U case.

Features

Video Input and Transmission

• Self-adaptive HDTVI, AHD, HDCVI and analog cameras
• Up to 12 MP resolution of IP cameras input
• Long distance transmission over UTP and coaxial cable

Compression and Recording

• H265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 8 MP resolution
• Supports POS triggered recording and POS information overlay

Video Output

• Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
• Separate CVBS output

Storage and Playback

• Eight SATA interfaces (up to 10 TB capacity per HDD)
• Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
• 8/16-ch synchronous playback
• Smart search for efficient playback
• Supports playback by main stream, or sub-stream for IP cameras
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Supports line crossing detection and intrusion detection of all channels and sudden scene change detection of 2-ch analog cameras
• Supports people counting and heat map functions for 1-ch analog camera
• VQD (Video Quality Diagnostics)
