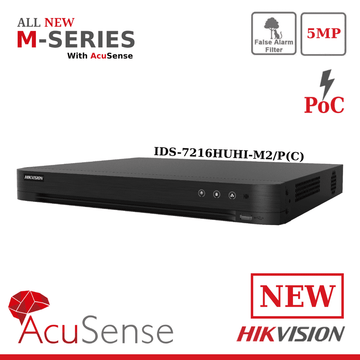

8MP Lite HIKVISION IDS-7216HUHI-M2/P (C) 16 CHANNEL ACUSENSE POC DVR
8MP Lite HIKVISION IDS-7216HUHI-M2/P (C) 16 CHANNEL ACUSENSE POC DVR
Features
- 16CH 5MP ACUSENSE POC DVR
- False alarm reduction by human and vehicle target classification based on deep learning
- Encoding Resolution: 8 MP@8 fps (channel 1 only)/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps ( P)/30 fps (N)
- IP Video Input: 8ch (up to 24ch)
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- 2 x SATA interfaces (max. 10TB each)
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Line Crossing Detection/Intrusion DetectionUp to 4-ch
- Facial Detection
- Facial Detection and CaptureFace picture detection, face picture search
- Video and Audio
- IP Video Input
8-ch (up to 24-ch)
Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16-ch;
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- PoC Camera Input
Support Hikvision PoC camera
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback16-ch
- HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input
4-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-streamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth128 Mbps
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection128
- Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out4/1
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 20 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
- Weight≤ 3.8 kg (without HDD, 8.4 lb.)
