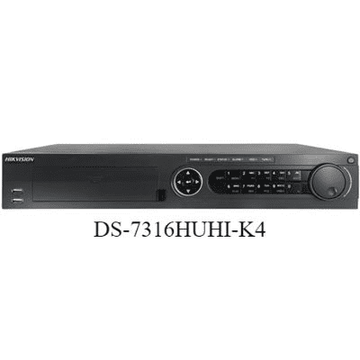

8MP Lite DS-7316HUHI-K4 Hikvision Turbo HD DVR Digital Video Recorder - 4 Bay

8MP Lite DS-7316HUHI-K4 Hikvision Turbo HD DVR Digital Video Recorder - 4 Bay

The Hikvision DS-7316HUHI-K4 4-Bay Turbo HD DVR Digital Video Recorder enclosure is designed to record and playback IP camera footage, perfect for home and business use.

This Hikvision DS-7316HUHI-K4 4-Bay Turbo HD DVR Digital Video Recorder supports multiple Video Content Analytics (VCA) events for both analogue and smart IP cameras, and can work both alone as a recorder and cooperate with other devices to form a comprehensive surveillance system.

Appearance Design

• Typical chassis design to guarantee the low noise and environmental protection of the device
• Front slot of DVD-R/W for more convenient installation and maintenance

Video Input and Transmission

• Self-adaptive HDTVI, AHD, HDCVI and analogue cameras
• Up to 18-ch 8 MP IP cameras input for DS-7316HUHI-K4
• Long distance transmission over UTP and coaxial cable

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analogue cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 5 MP resolution
• Supports POS triggered recording and POS information overlay

Video Output

• Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
• Separate CVBS output

Storage and Playback

• Four SATA interfaces (up to 8 TB capacity per HDD)
• Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
• 16-ch synchronous playback
• Smart search for efficient playback
• Supports playback by main stream, or sub-stream for IP cameras
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analogue and smart IP cameras
• Supports line crossing detection and intrusion detection of all channels and sudden scene change detection of 2-ch analogue cameras
• Supports people counting and heat map functions for 1-ch analogue camera
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network and Ethernet Access

• Hik-Connect and DDNS (Dynamic Domain Name System) for easy network management
• Two gigabit Ethernet network interfaces
• Output bandwidth limit configurable
