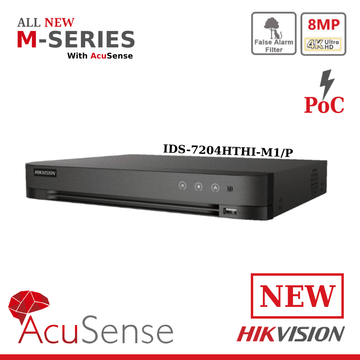

8MP IDS-7204HTHI-M1/P Hikvision 4ch AcuSense Turbo HD M-Series DVR
8MP IDS-7204HTHI-M1/P Hikvision 4ch AcuSense Turbo HD M-Series DVR
4ch False Alarm Reduction OR 1ch Facial Recognition - Records upto 8MP on the 1st channel - Audio via Coaxial cable. Please check Spec sheet for a more up to date specification.
Features
- 4 channels and 1 HDD 1U AcuSense DVR
- Supports facial recognition or false alarm reduction based on deep learning algorithm
- Supports face picture comparison and face picture search
- Up to 16 face picture libraries, with up to 500 face pictures in total
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 1st Channel is 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Line Crossing Detection/Intrusion DetectionUp to 4-ch
- Video and Audio
- IP Video Input
4-ch (up to 8-ch)
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
4-ch;
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- PoC Camera Input
Support Hikvision PoC camera
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback4-ch
- HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
- AHD Input5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDCVI Input4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input
4-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
Main stream:
8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 16 Mbps
- Dual-streamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth96 Mbps
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection32
- Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interfaces
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out8/4
- General
- Power Supply48 VDC, 2.5 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weight≤ 3.4 kg (without HDD, 7.5 lb.)
