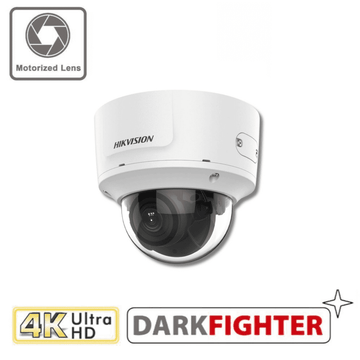

8MP Hikvision DS-2CD2785G0-IZS Motorized Varifocal Dome Network Camera
Regular price
£159.00
Sale price
£159.00
Regular price
Unit price
Information
8MP Hikvision DS-2CD2785G0-IZS Motorized Varifocal Dome Network Camera
The Hikvision DS-2CD2785G0-IZS is an 8 megapixel varifocal dome network camera which features IP67 weather resistance, IK10 vandal resistance and an IR range of up to 30m, making the camera ideal for a wide range of outdoor applications such as; offices, car parks and school grounds etc.
This camera also has a smart feature-set which includes:
- Line crossing detection
- Intrusion detection
- Unattended baggage detection
- Object removal detection
- Scene change detection
- Face detection
With image enhancing features such as; BLC (back light compensation) and 3D DNR (digital noise reduction) this camera can produce clear, quality images in differing light environments.
Key Features
- 1/2" Progressive Scan CMOS
- 3840 x 2160 @20fps
- H.265+, H.265
- 120dB WDR
- IP67, IK10
- IR range: up to 30m
- Powered by darkfighter
- BLC / 3D DNR / ROI
- Smart encoding: support low bit rate, low latency
- 4 behavious analyses and face detection
- Colour 0.008 lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Specification
- Camera
- Image Sensor1/2" Progressive Scan CMOS
- Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- FocusAuto
- Lens TypeMotorized, 2.8 to 12 mm
- FOVHorizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
- ApertureF1.4
- Lens MountΦ14
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution3840 × 2160
- Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region of Interest (ROI)Support 1 fixed region for main stream and sub stream separately
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
- DNR3D DNR
- Image EnhancementBLC/3D DNR
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
- Video Output1Vp-p composite output (75 Ω) (For adjustment only)
- On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
- Face DetectionYes
- Exception DetectionScene change detection
- General
- Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware VersionV5.5.80
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%,PoE (802.3af, class 3)
- Power Consumption and Current12 VDC, 0.9A, max. 10.5W,PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
- Camera DimensionCamera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2")
- Camera WeightCamera: 1300 g (2.9 lb.),With package: 1500 g (3.3 lb.)
- Approval
- ProtectionIP66，IK10
