8MP DS-7716NI-K4/16P Hikvision 16 Channel NVR 16 POE
Regular price
£275.57
Sale price
£275.57
Regular price
Unit price
Information

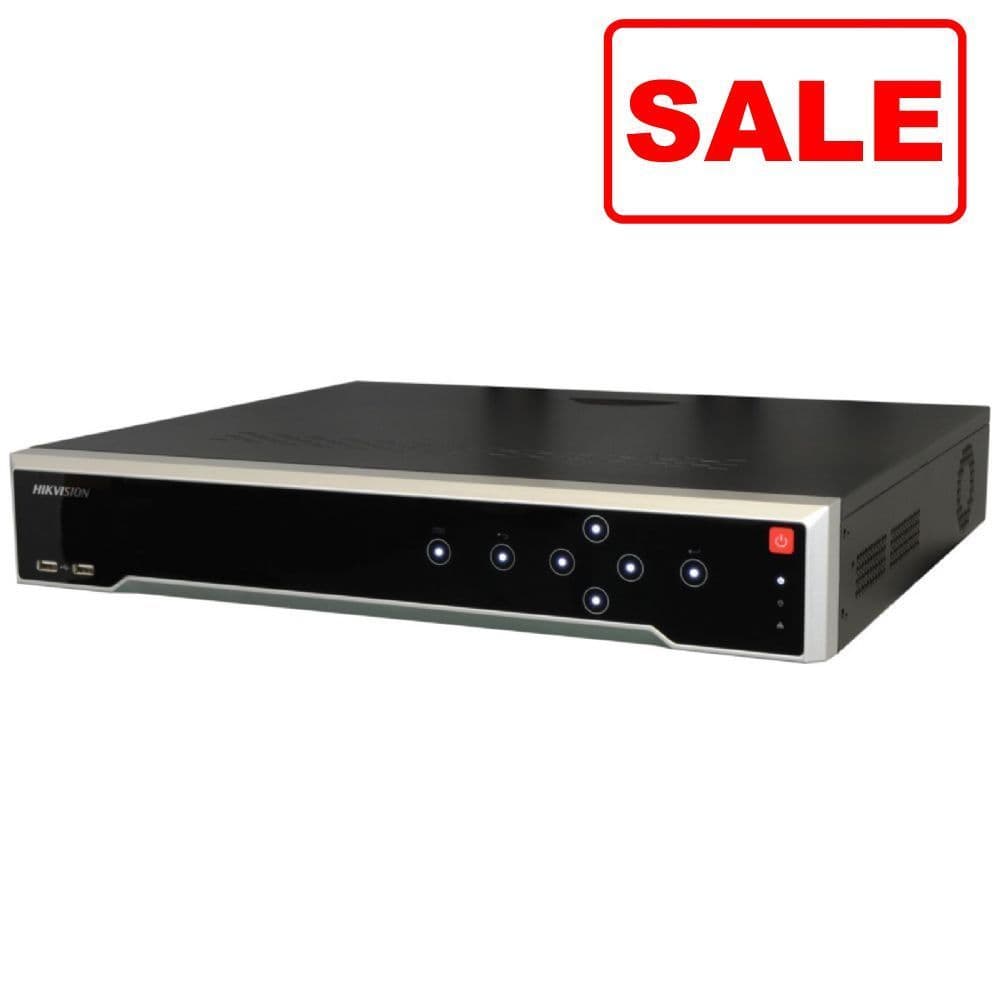

Hikvision DS-7716NI-K4/16p is a 16CH PoE, Network Video Recorder
Features
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K (3840x2160) resolution
- 16ch network cameras can be connected
- 160M incoming bandwidth
- Up to 4 SATA interfaces
- Plug & Play with up to 16 independent PoE network interfaces
- Support dual-os to ensure high reliability of system running
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Specification
- Video and Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI/VGA independent output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding FormatH.265/ H.265+/H.264/H.264+
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback16-ch
- Decoding Capability2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection64-ch
- Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- SATA4 SATA interfaces
- CapacityUp to 10 TB capacity for each HDD
- Alarm In/Out16/ 4 (16/9 is optional)
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Ctrl 12VN/A (optional to support)
- DC 12VN/A (optional to support)
- General
- Power Supply100 to 240 VAC, 50 to 60Hz
- Consumption≤ 20 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)445 × 400 × 71 mm ( 17.5"× 15.7" × 2.8")
- Weight≤ 5 kg (without HDD, 11 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained CertificationCE, KC, WEEE, REACH, ROHS, CB, LOA
