8MP DS-7608NI-K1/8P/4G Hikvision 8 Channel 4G NVR
8MP DS-7608NI-K1/8P/4G Hikvision 8 Channel 4G NVR
PLEASE NOTE: The DS-2CD7A26G0/P-IZS ANPR cameras do not work with this recorder

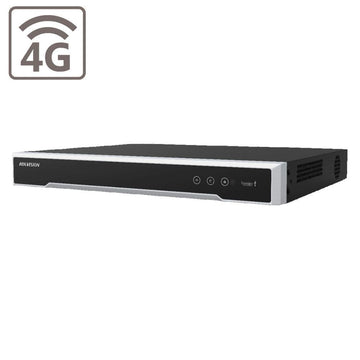

The Hikvision DS-7608NI-K1/8P/4G is an 8 channel network video recorder with optional 4G wireless network access. Users can add up to eight 8MP IP cameras to the NVR via the 8 ports located at the back of the device.
Users can connect one monitor to the NVR via the HDMI or VGA port for easy access. However the NVR can also be accessed via the Hik-Connect app or via a browser.
With a SIM/UIM card slot on the rear panel, a 4G wireless network can be achieved, ideal for temporary or isolated locations where a physical network connection is not possible. The DS-7604NI-K1/8P/8G comes with a SMA Antenna with a 3m cable to improve 4G strength.
Please note, a 4G SIM/UIM card is not included with this NVR and will need to be sourced separately.
- Max. HDD Support - 6TB (1x SATA Drive).
- Max. Supported IP Cameras - 8
- Max. Megabits Per Second - 80Mbps
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis4-ch
- Video and Audio
- IP Video Input8-ch
- Incoming Bandwidth80 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback8-ch
- Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2
- Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 75 W
- StandardIEEE 802.3 af/at
- Wireless Parameter
- SIM/UIM Card Slot1 micro SIM card slot, on rear panel
- SMA Antenna Interface
1 4G interface, antenna module cable length: 3 m
1 ANT interface for GPS antenna (GPS antenna is optional)
- Wireless Standard
GSM/EDGE: 850/900/1800MHz
WCDMA: B1/B5/B8
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 8 TB capacity for each HDD
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- General
- Power Supply48 VDC, 2.5 A
- Consumption≤ 10 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
- Weight≤ 1.18 kg (without HDD, 2.6 lb.)
