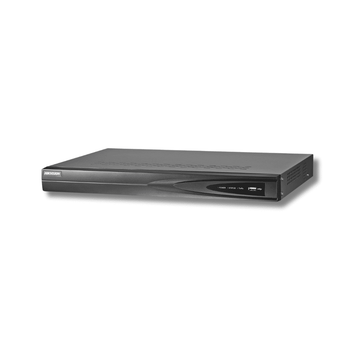

8MP DS-7604NI-K1/4P(C) Hikvision POE - 4 Channel NVR
Regular price
£119.00
Sale price
£119.00
Regular price
Unit price
Information
8MP DS-7604NI-K1/4P(C) Hikvision POE - 4 Channel NVR
This NVR offers you an economic solution for Small and medium IP based CCTV installations. It supports cameras up to 8 megapixels resolution. This NVR includes a 4 port Power over Ethernet (PoE) switch onboard making it a simple plug and play solution for camera connection. This NVR is Onvif compliant allowing maximum integration with 3rd party products. Audio recording, talkback function and camera output relay control over Network (Please note, functions are dependent on cameras with support for features, frame rate and resolution.
Features
- 4 channels recording
- Max incoming (recording) bandwidth 40 Mbps
- Max outgoing (viewing) bandwidth 80 Mbps
- Up to 8(4K) megapixel supported (frame rate and resolution effects the total number of cameras supported)
- Built-in 4 port PoE switch allowing easy connection and power to the cameras.
- ONVIF compliant device allowing any other ONVIF compliant camera work with it
- Monitor outputs, HDMI@4K, VGA@1080p
- Supports up to 6 Terabyte hard drive storage (1 x 6TB)
- Supports H.265/H.264/H.264+/H.265+ compression algorithms
- USB flash or Network back-up
- Motion detection with masking
- Password protected
- 3 Years Warranty
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis1-ch;4-ch
- Video and Audio
- IP Video Input4-ch
- Incoming Bandwidth40 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
- Recording
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback4-ch
- Decoding Capability
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
- Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 50 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 8 TB capacity for each disk
- USB Interface2 × USB 2.0
- Alarm In/OutN/A (4/1 is optional)
- General
- Power Supply48 VDC, 1.35 A
- Consumption≤ 10 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
- Weight≤ 1.18 kg (without HDD, 2.6 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
