8MP DS-2CE78U1T-IT3F Hikvision HD-TVI Turret Camera

8MP DS-2CE78U1T-IT3F Hikvision HD-TVI Turret Camera

Information
Information

Hikvision's revolutionary Turbo HD technology brings with it a huge breakthrough in the evolution of analogue transmissions, opening up a whole new range of possibilities using coaxial cabling. The Turbo HD product family includes a comprehensive range of full high definition cameras and DVRs.

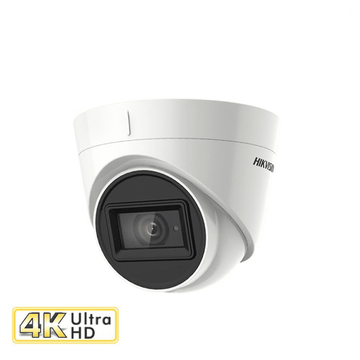

The DS-2CE78U1T-IT3F-2.8MM is a 4K 8mp ultra high definition turret dome that is packed with advanced features in an attractive and stylish casing. The popular turret dome shape is ideal for those wanting to add a discreet security camera that easily blends in into its surroundings.

See in the dark up to 60m with the cameras powerful EXIR night vision. EXIR will provide a more efficient and powerful night vision illumination (up to 30% more effective than tradition IR night vision). EXIR technology allows uniform IR illumination which eliminates traditional issues such as over exposure in the centre of the image and dark areas in the corner of the image.

The powerful fixed 2.8mm wide lens allows a large field of view, giving a huge coverage without the need for additional cameras.

Hikvisions up the coax technology gives simple access to the cameras On-Screen-Display (OSD) & built-in software, allowing customisation of the camera settings including colour, brightness & wide dynamic range for the best video quality every time. The weatherproof DS-2CE78U1T-IT3F-2.8MM can be mounted indoors and outdoors and is built tough enough to withstand whatever the weather throws at it.

Features:

  • 8MP high resolution (4K)
  • 4 in 1, can be used as TVI, CVI, AHD or Analogue camera
  • 2.8mm fixed lens
  • True day/night
  • OSD menu
  • Smart IR
  • EXIR 2.0 technology
  • Up to 60m IR distance
  • IP67 weatherproof
  • Up the Coax telemetry
  • 105dB digital wide dynamic range
  • 12V DC


Bracket Options:

Wall Mount: DS-1272ZJ-110-TRS
Deep Base: DS-1280ZJ-S

Specification

  • Camera
  • Image Sensor8.29 megapixel progressive scan CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. IlluminationColor: 0.01 Lux@(F2.0 AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOVHorizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
  • Lens MountM16
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 60 m
  • Smart Supplement LightYes
  • Image
  • Image SettingsAGC;Brightness;Sharpness
  • Frame Rate

    TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

    CVI: 8MP@12.5fps, 8MP@15fps

    AHD: 8M@12.5fps, 8M@15fps

    CVBS: 960H P/N

  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementHLC;BLC
  • Noise Reduction2D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output
  • General
  • Power

    12 VDC ±25%

    *You are recommended to use one power adapter to supply the power for one camera.

    Max. 5.3 W

  • MaterialMain body: Metal, Enclosure: Plastic
  • DimensionØ 109.82 mm × 91.03 mm (Ø 4.32" × 3.6" )
  • WeightApprox. 320 g (0.71 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP67
