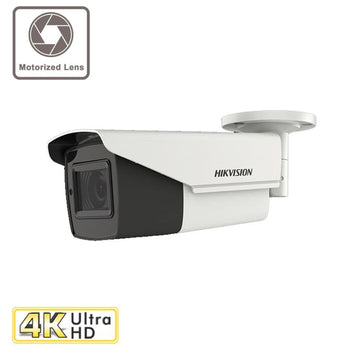

8MP DS-2CE19U1T-AIT3ZF Hikvision Vari-focal Lens Bullet Camera
DS-2CE19U1T-AIT3ZF is Hikvisions Ultra HD Analogue (TVI) bullet camera offering real time ultra HD resolution of 8MP - 3840 x 2160 pixels in a smart compact design. The camera has a motorized vari-focal 2.7-13.5mm lens, comes in a tough bullet design with IP67 protection and offers IR range of up to 80m with EXIR technology. The camera supports switchable TVI/AHD/CVI/CVBS outputs as well as dual voltage options of 12Vdc or 24Vac input.
The camera can only be used with the Hikvision DS-7200HTHI-K1 DVR or similar 8M TVI / 8M AHD or 8M CVI recorder.
Key Features
- 8.29 Megapixel high-performance CMOS
- 3840 × 2160 resolution
- Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
- 105 dB WDR, 3D DNR
- EXIR 2.0, smart IR, up to 80m IR distance
- Dual voltage input: 12 VDC ±25%/24 VAC ±25%
- Swithcable output: TVI/AHD?CVI/CVBS
- IP67
- Up the Coax(HIKVISION-C)
Specification
- Camera
- Image Sensor8.29 megapixel progressive scan CMOS
- Max. Resolution3840 (H) × 2160 (V)
- Min. IlluminationColor: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
- Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
- Lens
- Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
- Focal Length & FOVHorizontal FOV 108.1° to 45.6°
- Lens MountΦ14
- Illuminator
- Supplement Light RangeIR Distance: Up to 80 m
- Smart Supplement LightYes
- Image
- Image SettingsBrightness;Mirror;Sharpness;AGC
- Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC;HLC
- Noise Reduction2D DNR
- White BalanceAuto/Manual
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output
- General
- Power
9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
*You are recommended to use one power adapter to supply the power for one camera.
Max. 10.8 W
- MaterialFront cover: Metal, Main body: Plastic
- Dimension84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
- WeightApprox. 695 g (1.53 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- Approval
- ProtectionIP67
