8MP DS-2CD6D82G0-IHS 2.8MM Multi-Sensor Dual-Directional PanoVu Camera PanoVu 2x8MP 2.8mm
8MP DS-2CD6D82G0-IHS 2.8MM Multi-Sensor Dual-Directional PanoVu Camera PanoVu 2x8MP 2.8mm
Description

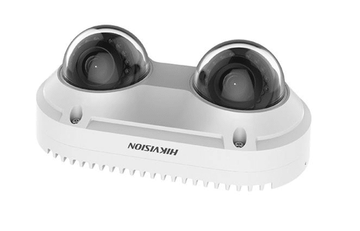

The Hikvision PanoVu DS-2CD6D82G0-IHS Dual- Directional PanoVu Camera features a dual-lens design to capture two separate wide angle views. Other features include H.265 video compression, audio I/O, an internal microSD memory card slot (up to 256 GB), and an IR range of up to 33 feet (10 meters).
This is a special order item and is non-cancellable & non-returnable. For delivery date and further information please don't hesitate to give us a ring. Thank you.
Features
-
Minimum Illumination Color: 0.056 lux @ (/2.0, AGC on), 0 lux with IR
-
3840 × 2160 @ 24 fps
-
Flexible Lens: P: -90 to 90°; T: 0 to 60° (2.8 mm), 0 to 70° (4 mm/6 mm); R: 0 to 355°
-
H.265, H.264
-
Frame Rate: Main Stream 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
-
IR Range Up to 33 ft (10 m)
-
12 VDC, POE (802.3af)
This video is not footage of this camera - It does however show how this camera can operate Providing coverage of 2 2.8mm Cameras
Specification
- Camera
- Image Sensor1/2.5" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.056 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightICR Cut
- Angle AdjustmentP: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355°
- Lens
- Focal Length & FOV
2.8mm @ F2.0, horizontal FOV 103°, vertical FOV 53°, diagonal FOV 124°
4 mm @ F2.0, horizontal FOV 79°, vertical FOV 41°, diagonal FOV 94°
6 mm @ F2.0, horizontal FOV 50°, vertical FOV 27°, diagonal FOV 58°
- Lens MountM12
- ApertureF2.0
- DORI
- DORI
2.8 mm: D: 105.4 m, O: 41.8 m, R: 21.1 m, I: 10.5 m
4 mm: D: 123.5 m, O: 49.0 m, R: 24.7 m, I: 12.3 m
6 mm: D: 181.5 m, O: 72.0 m, R: 36.3 m, I: 18.1 m
- Illuminator
- Supplement Light RangeUp to 10 m
- Supplement Light TypeIR
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 12.5 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 12.5 fps (640 × 480, 704 × 576)
60 Hz: 15 fps (640 × 480, 704 × 480)
- Video Compression H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for each stream
- Audio
- Audio Type-S: Stereo
- Audio Compression -S: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 60Kbps (MP2L2)/250 Kbps (PCM)
- Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-S: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Image Parameters SwitchYes
- Image Settings
Rotate, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser
*Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time.
- Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In (-S)
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, Defog, EIS, 3D DNR
- Privacy MaskYes
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio
Without -S: 2 built-in mics
-S: 2 built-in mics, 1 line in, 1 line out
- Alarm -S: 1 input, 1 output (max. 36 VDC, 30mA)
- RS-485-S: 1 RS-485 interface, half duplex
- Reset KeyYes
- Event
- Basic Event Motion detection,video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Scene change detection, audio exception detection
- LinkageUpload to FTP/NAS/memory card, send email, notify surveillance center
- General
- Power
12 VDC, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 11 W
- Dimension164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
- Package Dimension227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
- WeightApprox. 770 g (1.7 lb.)
- With Package WeightApprox. 1053 g (2.3 lb.)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionMirror, password protection, watermark, one-key reset, anti-flicker, heartbeat
- Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIngress protection: IP67, IK10
