8MP DS-2CD2H85FWD-IZS external turret Motorised Zoom Turret Network Camera
8MP DS-2CD2H85FWD-IZS external turret Motorised Zoom Turret Network Camera

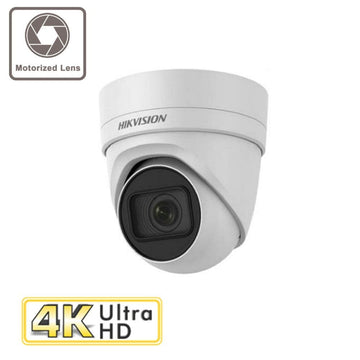

The Hikvision DS-2CD2H85FWD-IZS is an 8MP (3840 x 2160) turret camera that uses a motorised zoom lens with a 2.8mm to 12mm focal length.
It also has inbuilt infra-red LEDs that have a maximum distance of 30m along with IK10 vandal resistant housing and IP67 weatherproof housing making it a great choice for outdoor applications, day or night.
With the DS-2CD2H85FWD-IZS's 3-axis adjust-ability, choice of mounting options and zoom lens, any area of interest can be easily covered making this camera really versatile and a popular choice for many of our customers.
This turret camera utilises a range of Hikvision's features to enhance images and security, for example, back light compensation (BLC), 3D digital noise reduction (3D DNR) and region of interest (ROI). Along with this, the DS-2CD2H85FWD-IZS also uses a range of smart features such as line crossing detection, intrusion detection and object removal detection.
As with all cameras in the EasyIP 3.0 family, H.265+ video compression offers up to a 70% saving on storage and bandwidth over H.264 with minimal effects to image quality. This saving means that the DS-2CD2H85FWD-IZS's SD card slot can be utilised without reaching maximum capacity too quickly.
This turret can be powered by PoE or a 12VDC power supply and has the ability to be accessed remotely via web browser or by using the Hik-Connect app.
Features
- 8MP resolution
- 3840 x 2160
- H.265/H.265+ codec
- Motorised zoom lens
- 120dB wide dynamic range
- IP67 rated weatherproof housing
- IK10 rated vandal proof housing
- Back light compensation
- 3D digital noise reduction technology
- Region of interest
-Up to 30m IR range
- Micro SD card slot
- 30 fps
- Line crossing detection
- Intrusion detection
Specification
- Camera
- Image Sensor1/2.5" Progressive Scan CMOS
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- FocusAuto
- Lens Type2.8 to 12 mm, Motorized
- FOVHorizontal field of view: 115° to 35°,Vertical field of view: 60° to 19°,Diagonal field of view: 146° to 38.5°
- ApertureF1.4
- Lens MountΦ14
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Video
- Max. Resolution3840 × 2160
- Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Scalable Video Coding (SVC)Support H.264 and H.265 encoding
- Region of Interest (ROI)Support 1 fixed region for main stream and sub stream
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
- Image
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
- Video OutputNo
- On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
- Face DetectionYes
- Exception DetectionScene change detection
- General
- Firmware VersionV5.5.80
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, PoE (802.3af),Terminal block for DC input
- Power Consumption and Current12 VDC, 0.92A, max. 11W,PoE (802.3af, 36V to 57V), 0.35A to 0.22A, max. 12.5W
- Camera DimensionΦ 135.8 mm × 145.5 mm (Φ 5.35" × 5.73")
- Camera WeightWith Package: Approx. 1220 g (2.69 lb.),Camera: Approx. 1060 g (2.34 lb.)
- Approval
- ProtectionIK10, IP67
