8MP DS-2CD2786G2-IZS Acusense 8MP Motorized Varifocal Dome Network Camera (Offer)
8MP DS-2CD2786G2-IZS Acusense 8MP Motorized Varifocal Dome Network Camera (Offer)
Quick Overview

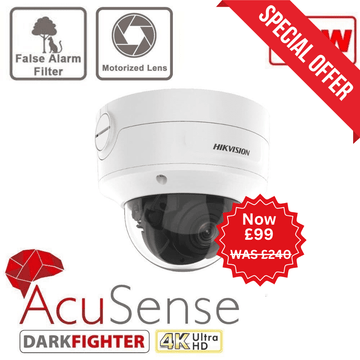

The Hikvision DS-2CD2786G2-IZS is a new, 8 megapixel dome camera as part of the latest release of the G2 Acusense range. With a varifocal lens providing a focal length from 2.8mm up to 12mm, the camera is a versatile option for monitored surveillance.
AcuSense Technology has been developed to use deep learning algorithms to reduce false alarm notifications. Previously alarms would be falsely triggered by elements such as rain, foliage and wildlife. Now, with the AcuSense technology, the smart algorithms focus on targets such as vehicles and humans, greatly reducing the false alarms. This bullet camera can detect intelligent events such as Motion Detection, Line Crossing Detection and Tampering Alarms.
As well as being powered by Darkfighter technology, the camera also features other technologies such as 120 dB WDR, BLC, HLC and 3D DNR, all of which support the camera in achieving the best image quality possible, even when surveillance is required where light levels are challenging.
Users can mount the DS-2CD2786G2-IZS internally or externally as the camera has been rated as water and dust resistant. Plus, with it's powerful IR supplement lighting reaching a distance of up to 40 metres it can illuminate large spaces in darkness.
There is space on board for a MicroSD card (up to 256GB) and options to add audio and alarm, 3rd party devices.
The DS-2CD2786G2-IZS features H.265+ video compression which has seen users experience savings on bandwidth and storage space of up to 90%. We recommend powering this camera by POE however, it can also be powered by a 12V DC mains power supply unit (not provided).
Features
- 8MP
- Max resolution 3840 x 2160 @ 20fps
- Varifocal lens 2.8mm - 12mm focal length
- IR Range up to 40m
- Powered by Darkfighter technology
- Water and dust resistant (IP66)
- Vandal resistant (IK10)
- H.265+ Video Compression
- Audio and alarm interface
Specification
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm: horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127° to 52°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.4
- DORI
- DORI
2.8 to 12 mm:
Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Target CroppingYes
- Audio
- Audio TypeMono sound
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD slot, up to 256 GB
- Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- Deep Learning Function
- Face CaptureYes
- General
- Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, two-core terminal block
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- DimensionØ153.5 mm × 133.2 mm (Ø6" × 5.2")
- Package Dimension244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
- WeightApprox. 1080 g (2.4 lb.)
- With Package WeightApprox. 1671 g (3.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
