8MP DS-2CD2785FWD-IZS Hikvision - Motorised Network Dome Camera
8MP DS-2CD2785FWD-IZS Hikvision - Motorised Network Dome Camera

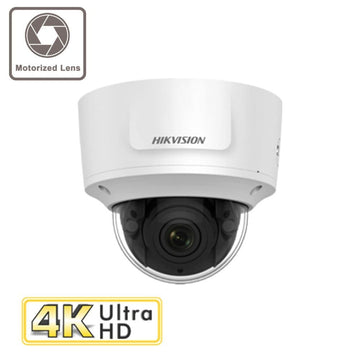

Hikvision 8MP WDR Vari-focal Network Dome Camera (DS-2CD2785FWD-IZS)
The Hikvision DS-2CD2785FWD-IZS is an 8MP dome camera with a 2.8mm - 12mm motorised zoom lens and built-in infra-red LEDs that are effective up to 30m. This camera is fitted with IP67 weatheproof housing and IK10 vandal resistant housing making it a great choice for outdoor applications.
The DS-2CD2785FWD-IZS can cover a wide area of interest with 3-axes adjust-ability and optional wall mount. A range of features are used to improve mage quality: back light compensation (BLC), 3D digital noise reduction technology (3D DNR), wide dynamic range (WDR) and region of interest (ROI).
Furthermore, a range of built-in smart features are used to imrprove security even further: motion detection, line crossing detection intrusion detection and more.
The DS-2CD2785FWD-IZS has an optional SD card slot and uses H.265+ compression to greatly reduce bandwidth and storage needs.
This camera can be powered with a 12VDC power supply or by PoE.
It can be accessed remotely via a web browser or the Hik-Connect app.
Specifications
Hikvision 8MP WDR Vari-focal Network Dome Camera
1/2.5 Progressive Scan CMOS
Colour: 0.01 Lux @ (F1.2, AGC ON)
0 Lux with IR
up to 30m IR Range
3840 × 2160: 20fps
2.8 - 12mm motorised lens
Built-in Micro SD/SDHC/SDXC slot up to 128 GB
120dB WDR
BLC
3D DNR
IP67
IK10
Alarm & Audio I/O
12VDC/PoE
3 year warranty
Specification
- Camera
- Image Sensor 1/2.5" Progressive Scan CMOS
- Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Focus Auto
- Lens Type 2.8 to 12 mm，Motorized
- FOV Horizontal field of view: 115° to 35°,Vertical field of view: 60° to 19°,Diagonal field of view: 146° to 38.5°
- Aperture F1.4
- Lens Mount Φ14
- Illuminator
- IR Range Up to 30 m
- Wavelength 850nm
- Video
- Max. Resolution 3840 × 2160
- Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Scalable Video Coding (SVC) Support H.264 and H.265 encoding
- Region of Interest (ROI) Support 1 fixed region for main stream and sub stream
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
- Image
- Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
- DNR 3D DNR
- Image Enhancement BLC/3D DNR/HLC
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Audio 1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
- On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
- Face Detection Yes
- Exception Detection Scene change detection
- General
- Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version V5.5.80
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, PoE (802.3af),Terminal block for DC input
- Power Consumption and Current 12 VDC, 0.95A, max. 11.5W,PoE (802.3af, 36V to 57V), 0.3A to 0.1A, max. 12.9W
- Camera Dimension Φ153.4 × 133.1 mm (Φ6.04" × 5.24")
- Camera Weight Camera: 1287 g (2.84 lb.)
- Approval
- Protection IK10，IP66
