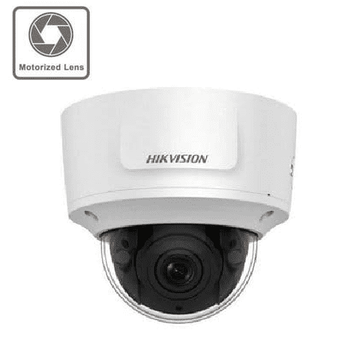

8MP DS-2CD2783G0-IZS Pro EasyIP 2.0plus Outdoor HD PoE Dome IP Camera w/ Motorised Varifocal lens

• Camera
• Image Sensor 1/2.5" Progressive Scan CMOS
• Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed 1/3 s to 1/100,000 s
• Slow Shutter Yes
• Day &Night IR Cut Filter
• Wide Dynamic Range 120dB
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• DNR 3D DNR

• Lens
• Lens 2.8 to 12 mm
• Auto-Iris No
• Aperture F1.6
• Focus Auto
• FOV Horizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
• Lens Mount Φ14
• Lens Type Motorized

• Illuminator
• IR Range Up to 30 m
• Wavelength 850nm

• Decoding
• Audio compression G722.1/G.711/G726/MP2L2/PCM/MP3

• Video
• Max. Resolution 3840 × 2160
• Main Stream 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• H.264 Type Main Profile/High Profile
• H.265 Type Main Profile
• Video Bit Rate 32 Kbps to 16 Mbps
• SVC H.264 and H.265 encoding support

• Audio
• Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
• Environment Noise Filtering Yes
• Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz

• Smart Feature-Set
• Smart Event Line crossing detection, intrusion detection, face detection
• Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

• Image
• Image Enhancement BLC/3D DNR/HLC
• Image Setting Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In

• Wi-Fi
• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

• Network
• Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live View Up to 6 channels
• User/Host Up to 32 users ,3 levels: Administrator, Operator and User
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Firmware Version 5.6.3

• Interface
• Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
• Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
• Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
• Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
• On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

• Approval
• Impact Protection IK10

• Compression Standard
• H.264+ Main stream supports
• H.265+ Main stream supports

• Smart Feature-set
• Face Detection Yes

• General
• Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Reset Yes
• Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Power Consumption and Current 12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
• Material Metal
• Dimensions Φ153.4 × 133.1 mm (Φ6" × 5.2")
• Weight Camera: 1287 g (2.8 lb.)
• Interface Protection IP66
