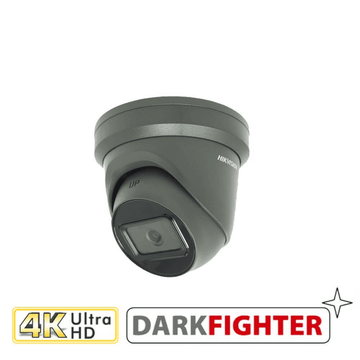

8MP DS-2CD2385G1-I-G IR Hikvision Fixed Turret Network Camera Grey
8MP DS-2CD2385G1-I-G IR Hikvision Fixed Turret Network Camera Grey
The Hikvision DS-2CD2385G1-I is one of the newest additions to the EasyIP 3.0 range released in April 2019 featuring an all new turret design.
Although this camera has the new 2019 design it still has the same great features as its predecessor with some added extras such as:
Darkfighter Technology
~ improving the cameras low light image quality
Exception Detection
~ scene change detection
With an IR range of up to 30m, an IP67 weather-proof housing and a working temperature of -30 °C to +60 °C, this camera perfect for a wide range of outdoor applications. This is supported by 3-axis adjustment for easy installation: Pan 0°~360°, Tilt 0°~75° and Rotate 0°~360°.
Smart Feature Set:
- Line Crossing Detection
- Intrusion Detection
- Unattended Baggage Detection
- Object Removal Detection
- Face Detection
Armed with enhancing features such as; high light compensation (HLC), back light compensation (BLC), 3D digital noise reduction (3D DNR), and 120dB wide dynamic range (WDR), the DS-2CD2385G1-I gives a high quality, detailed image in low-light environments.
This camera can be powered via PoE or 12V DC power supply, we usually recommend PoE for ease of installation as you can get both power and data through the one cable.
Features
- Powered by Darkfighter
- BLC/3D DNR/ROI/HLC/120dB WDR
- Up to 8 megapixel high resolution
- IR range: Up to 30m
- H.265, H.265+, H.264+, H.264
- 2.8 mm
- IP67
- Max. 3840 × 2160 @20fps
- 12 VDC & PoE (802.3af, class 3)
- Support on-board storage, up to 128GB
- Color: 0.008 Lux @ (F1.2, AGC ON)
-0.014 Lux @(F1.6, AGC ON)
Specification
- Camera
- Image Sensor1/2" Progressive Scan CMOS
- Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- FocusFixed
- Lens Type2.8/4/6 mm
- FOV
2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°
4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°
6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
- ApertureF1.6
- Lens MountM16
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution3840 × 2160
- Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),
- Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240),
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.266,
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region of Interest (ROI)Support 1 fixed region for main stream and sub stream separately
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/HostUp to 32 users,3 levels: Administrator, Operator and User,
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm TriggerMotion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsRotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
- Interface
- On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
- Face DetectionYes
- Exception DetectionScene change detection
- General
- Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware VersionV5.5.61
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),
- Power Consumption and Current12 VDC, 0.7 A, max: 7.5 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W,
- Camera DimensionCamera: Φ 138.3 × 125 mm (5.4″ × 4.9″)
- Camera WeightCamera: 725 g (1.6 lb.),With package: 966 g (2.1 lb.),
- Approval
- ProtectionIP67
