8MP DS-2CD2185G0-IMS IR Fixed Indoor HDMI Dome Network Camera
8MP DS-2CD2185G0-IMS IR Fixed Indoor HDMI Dome Network Camera
Information
Quick Overview - Internal Dome

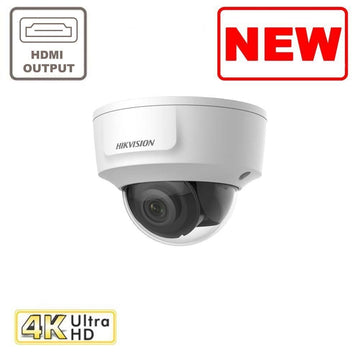

The Hikvision DS-2CD2185G0-IMS is an 8MP IR dome camera with HDMI output, the first of it's kind from Hikvision.
With an HDMI output users can directly connect a monitor to the camera, this can be used for live streaming in a wide range of applications such as shops, garages and banks.
The DS-2CD2185G0-IMS is equipped with 3-axis adjustment enabling users to manually adjust camera position for best coverage. Angle of adjustment: Pan 0° ~ 355°, Tilt 0° ~ 75° and Rotate 0° ~ 355°.
The DS-2CD2185G0-IMS comes with enhancing features such as high light compensation (HLC), 3D digital noise reduction (3D DNR), back light compensation (BLC) and 120dB wide dynamic range (WDR), this gives users a detailed, high quality image in ultra-low light environments.
Features
- BLC/3D DNR/ROI/HLC
- Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
- Max 3840 × 2160@20fps
- IR range: Up to 30m
- H.265, H.264
- IK10
- 4 Behavior analyses, and face detection
- 120dB WDR
- 3-Axis adjustment
- Built-in micro SD/SDHC/SDXC card slot, up to 128GB
Specification
- Camera
- Image Sensor 1/2.5" Progressive Scan CMOS
- Min. Illumination Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Lens Type 2.8/4/6 mm
- FOV 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° ;4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95° ;6 mm, horizontal FOV: 50° , vertical FOV: 28° , diagonal FOV: 59°
- Aperture F2.0
- Lens Mount Φ12
- Illuminator
- IR Range Up to 30 m
- Wavelength 850nm
- Video
- Max. Resolution 3840 × 2160
- Main Stream 50Hz: 20fps (3840 × 2160), 25fps (3072 × 1728, 1920 × 1080, 1280 × 720) ;60Hz: 20fps (3840 × 2160, 3072 × 1728, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) ;60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression Main stream: H.265/H.264 ;Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ No
- H.265+ No
- Region of Interest (ROI) Support 1 fixed region for main stream and sub-stream
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/Host Up to 32 users ,3 levels: Administrator, Operator and User
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
- DNR 3D DNR
- Image Enhancement BLC/3D DNR/HLC
- Image Settings Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio 1 input (line in/mic in, terminal block), 1 output ( two-core terminal block), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output 1 HDMI™, type D, female plug (-M)
- On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart Event Line crossing detection, intrusion detection
- Face Detection Yes
- General
- General Function Anti-flicke, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) ; IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current 12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
- Camera Dimension Camera: Φ 119 × 90 mm (Φ 4.7" × 3.5")
- Camera Weight Camera: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.)
- Approval
- Protection IK10
