8MP DS-2CD2185FWD-I Hikvision Lens IP Camera
8MP DS-2CD2185FWD-I Hikvision Lens IP Camera
8MP Hikvision Lens IP Camera (DS-2CD2185FWD-I) - Internal
Description

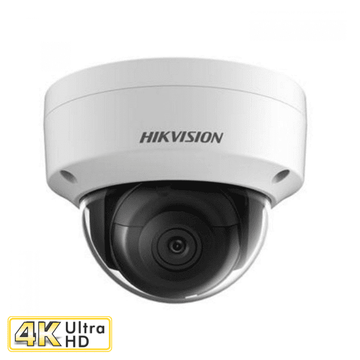

The DS-2CD2185FWD-I is a 8MP (3840 x 2160) dome camera with the choice of either a 2.8mm or 4mm fixed lens. It is fitted with IR LEDs that provide a maximum distance of 30m in darkness, IK10 vandal resistant housing and IP67 rated weatherproof housing making it a great choice for Internal applications where vandalism may be a concern.
The DS-2CD2185FWD-I has 3-axis adjust-ability and a variety of mounting options available helping the user to find the perfect solution to cover their specific areas of interest.
It also comes equipped with a range of image enhancing features such as 3D digital noise reduction technology (3D DNR) and back light compensation (BLC). On top of this is a smart feature set including motion detection, line crossing detection and intrusion detection.
This camera has a built in SD card slot which can be used to it's full ability thanks to H.265+ video compression which offers up to 70% savings on storage and bandwidth over H.264. The DS-2CD2185FWD-I can be powered via a 12VDC power supply or simply by PoE.
Remote access is possible through a browser or the Hik-Connect app.
Key Features
- 8MP resolution
- 3840 x 2160
- 20 fps
- Range of focal lengths available
- H.264, H.264+, H.265, H.265+
- 120dB wide dynamic range
- 3D digital noise reduction technology
- 30m IR range
- Micro SD card slot, up to 128GB
- IP67 rated weatherproof housing
- IK10 rated vandal proof housing
- 3-axis adjustment
Brackets that it will take:
DS-1258ZJ DS-1272ZJ-110
DS-1280ZJ-DM18
Specification
- Camera
- Image Sensor1/2.5" Progressive Scan CMOS
- Min. IlluminationColor: 0.01 lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- FocusFixed
- Lens Type2.8/4/6/8/12 mm
- FOV2.8 mm, horizontal field of view: 102°;4 mm, horizontal field of view: 79°;6 mm, horizontal field of view: 50°;8 mm, horizontal field of view: 40°;12 mm, horizontal field of view: 23°
- ApertureF2.0
- Lens MountM12
- Illuminator
- IR Range30 m
- Video
- Max. Resolution3840 × 2160
- Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288);60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately
- Audio
- Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Image
- Day/Night SwitchDay/Night/Auto/Schedule
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128G
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
- Face DetectionYes
- Exception DetectionScene change detection
- General
- Firmware VersionV5.5.80
- General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 6.2 W, PoE(802.3af, 36 V to 57 V,class 3), 9 W
- Camera DimensionCamera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
- Camera WeightCamera: 500 g (1.1 lb.)
