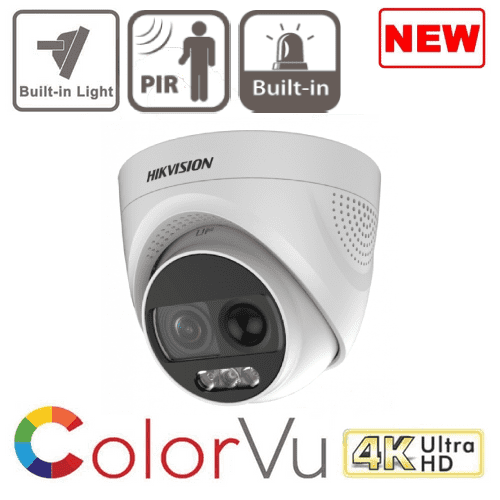

8MP 4K Hikvision DS-2CE72UF3T-PIRXO ColorVu PIR Siren Fixed Turret TVI Camera

• Camera
• Image Sensor8 MP CMOS
• Max. Resolution3840 (H) × 2160 (V)
• Min. Illumination0.0005 Lux @ (F1.0,AGC ON), 0 Lux with white Light
• Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127°

  3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°

• Lens MountM16

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsAGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
• Frame Rate8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
• Day/Night ModeColor
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementWDR;BLC;HLC;Global;HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual
• White LightAuto/Off

• Supplement Detection(PIR)
• PIR Range11 m
• PIR Angle110°

• Interface
• Video Output1 HD analog output
• Alarm

  1 line out

  flashing light alarm (white)

• Event
• Motion Detection4 programmable motion areas

• General
• Power

  12 VDC ± 25%, max. 6.4 W

  *You are recommended to use one power adapter to supply the power for one camera.

• MaterialMain body: Metal, Enclosure: Plastic
• DimensionØ 109.8 mm × 91.6 mm (Ø 4.32" × 3.6")
• WeightApprox. 416 g (0.92 lb.)
• Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

• Approval
• ProtectionIP67
