Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers, this means much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost-effective and time-saving solution to your TVI installations.

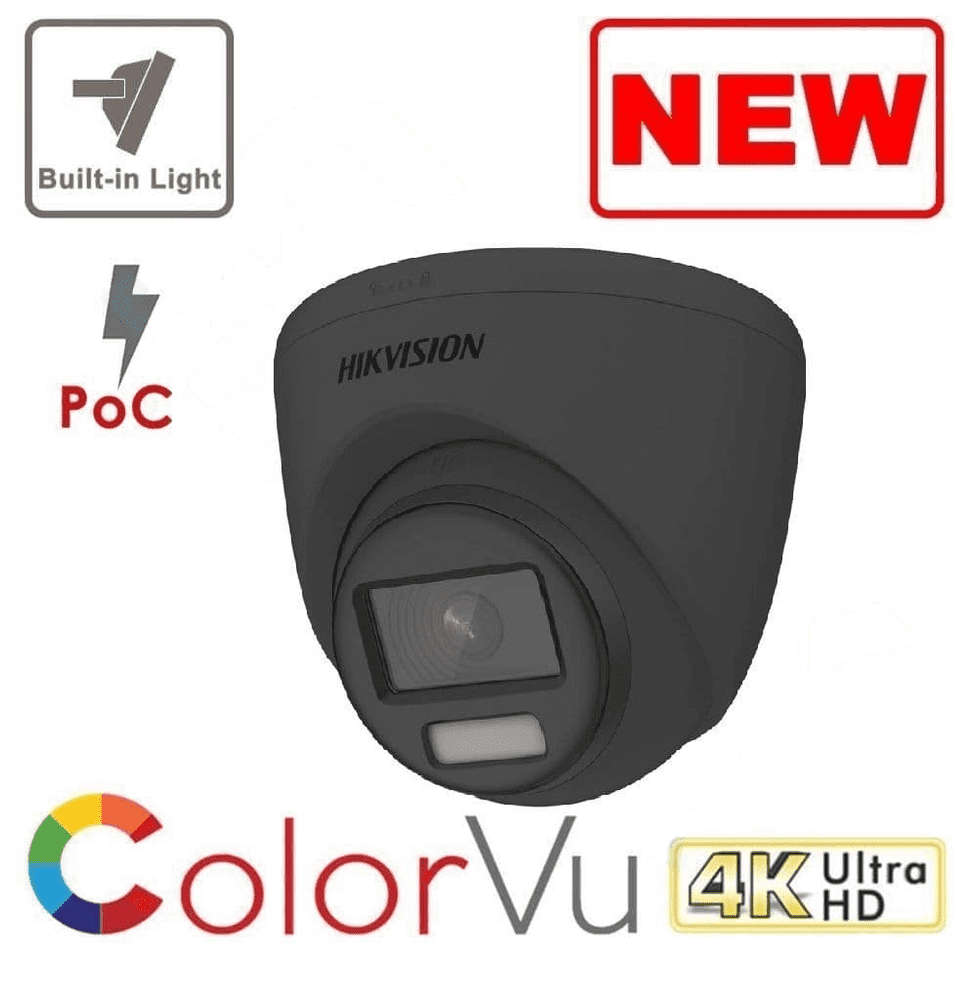

DS-2CE72UF3T-E is Hikvisions 8MP ColorVu HD-TVI turret camera, up to 40m white light distance and IP67 weather resistant rating.
This 4 in 1 HD analogue camera supports up to 8MP resolution output in TVI or AHD format. This high performance camera incorporates Hikvision ultra low light sensor for superior low light sensitivity down to 0.0005 Lux (F1.0) or 0 Lux with IR on.
Specification
- Camera
- Image Sensor8 MP CMOS
- Signal SystemPAL/NTSC
- Max. Resolution3840 (H) × 2160 (V)
- Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
- Day & Night24/7 Color Imaging
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131°
3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113°
- Lens MountM16
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40 m
- Image
- Frame RateTVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
- Wide Dynamic Range (WDR)≥130 dB
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Day/Night ModeColor
- White BalanceAuto/Manual
- Image EnhancementWDR, BLC, HLC, Global, HLS
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR/2D DNR
- Image SettingsBrightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC
- Interface
- Video Output1 HD analog output
- AlarmSolid Light Alarm (White Light)
- Event
- Motion Detection4 programmable motion areas
- General
- LanguageEnglish
- Operating Condition-40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)
- MaterialMain body: Metal, Enclosure: Plastic
- CommunicationHIKVISION-C
- DimensionØ109.98 mm × 98.27 mm (4.33" × 3.87")
- WeightApprox. 350 g (0.77 lb.)
- Power
12 VDC ± 25%/PoC.at, Max. 5.1 W
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
- Approval
- ProtectionIP67
