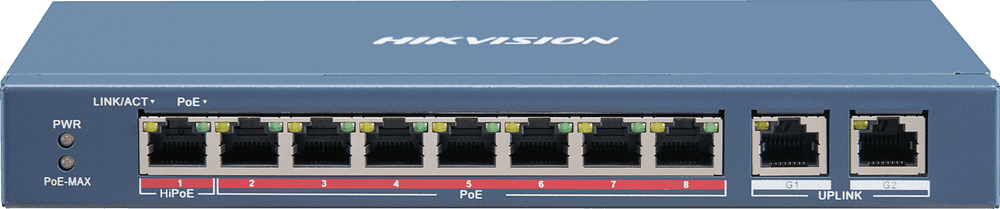

8 Port DS-3E0310HP-E 100 Mbps Long-Range Unmanaged PoE Switch with 2 Uplinks
DS-3E0310HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports.
The switches provide advanced Hi-PoE/PoE technology and supports extend mode with long-range access up to 250 m. Meanwhile, the 2 × 10/100/1000 Mbps RJ45 uplink ports guarantee applications of multiple network solutions.
Features
- 1 x 10/100 Mbps Hi-POE Port 7 × 10/100 Mbps PoE ports
- 2 × 10/100/1000 Mbps RJ45 ports
- 2 Uplink ports
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W port power)
- IEEE 802.3at/af standard for PoE ports
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- AF/AT camera reach up to 250m in extend mode. Hi-PoE camera reach up to 150 m
- PoE power management
- Dual uplink network design
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
Specification
- General
- ShellMetal material, fan-free design
- Net Weight0.55 kg (1.21 lb)
- Gross Weight1.22 kg (2.69 lb)
- Dimensions (W × H × D)217.6 mm × 27.8 mm × 103.55 mm (8.6'' × 1.1'' × 4.1'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 2.5 A
- Max. Power Consumption120 W
- Power Consumption in Idle10 W
- Installation ModeWall-Mounted,Desk-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- MAC Address Table8 K
- Switching Capacity5.60 Gbps
- Packet Forwarding Rate4.17 Mpps
- Internal Cache4 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- Max. Port Power
Port 1: 90 W
Ports 2 to 8: 30 W
- PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 8
- PoE Power Budget110 W
- Dialing Function
- Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Software Function
- VIP PortPorts 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
