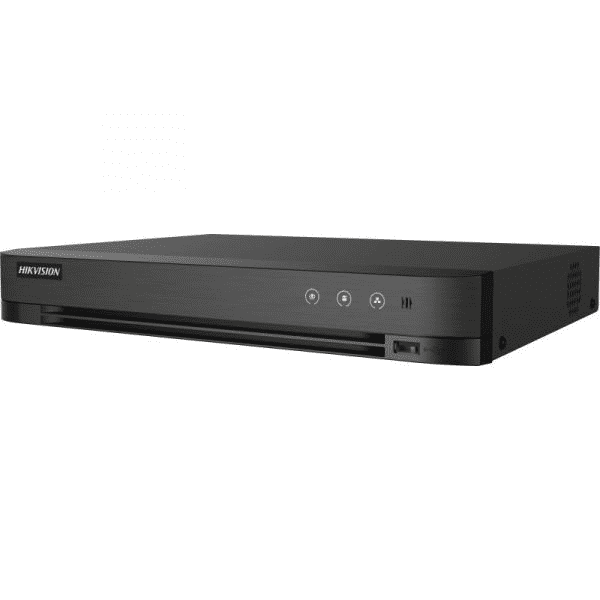

8-ch Hikvision iDS-7208HQHI-M1/XT(STD) 1080p 1U H.265 AcuSense DVR
8-ch Hikvision iDS-7208HQHI-M1/XT(STD) 1080p 1U H.265 AcuSense DVR
- 8 channels and 1 HDD 1U AcuSense DVR.
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm.
- Support 4-ch AcuSearch Technology.
- Efficient H.265 pro+ compression technology.
- Encoding ability up to 3K/5M Lite @ 12 fps.
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP).
- Up to 12 -ch network cameras can be connected.
- Support All channels Motion Detection Technology.
- Support All channels HDTVI Two-Way Audio Technology.
Specification
- Facial Recognition
- Face Picture LibraryUp to 16 face picture libraries
- Face Picture Comparison (Captured from Camera)Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle Analysis
Up to 4-ch
Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.
- Video and Audio
- IP Video Input
2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), Up to 6 MP resolution
Note: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.
- Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- CVBS InputPAL/NTSC
- HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Input
1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback8-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-streamSupport main stream or sub stream
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Remote Connection64
- Total Bandwidth96 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- Serial InterfaceRS-485 (half-duplex)
- SATA1 SATA interface, up to 10 TB capacity for each disk
- Alarm In/OutN/A (optional to support)
- USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 18 W (without HDD)
- Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
- Weight≤ 1.78 kg (3.9 lb) (without HDD)
