6MP DS-2CD2T63G0-I5 Hikvision Bullet Network Camera
6MP DS-2CD2T63G0-I5 Hikvision Bullet Network Camera
Information
6MP DS-2CD2T63G0-I5 Hikvision Bullet Network Camera

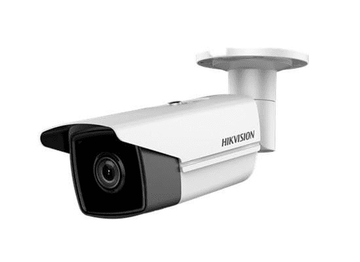

The DS-2CD2T63G0-I5 is a 6MP bullet camera with powerful infra-red LEDs that work up to 50m. It is a great choice for outdoor applications with IP67 rated weatherproof housing and a built in bracket that has 3-axis adjustment. An optional junction box can be used to keep connections tidy.
This camera uses back light compensation (BLC) and 3D digital noise reduction technology (3D DNR) to improve image quality. It also uses a range of smart features such as motion detection, line crossing detection and intrusion detection to improve security further.
The DS-2CD2T63G0-I5 supports Hikvision's latest H.265+ video compression which dramatically reduces bandwidth and storage usage. There is also a built-in micro SD card slot.
This camera can be powered with either a 12VDC power supply or by PoE. It can be accessed remotely through a browser or by Hik-connect.
Key Features
- 6MP resolution
- 3072 x 2048
- Max. 30fps
- Range of focal lengths available
- Ultra-low light
- H.264, H.264+, H.265, H.265+ compression
- 120dB wide dynamic range
- 3D digital noise reduction technology
- 50m IR range
- 128GB on-board storage
- IP67 rated weatherproof housing
Specification
- Camera
- Image Sensor1/2.9" Progressive Scan CMOS
- Min. IlluminationColor: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
- Lens
- FocusFixed
- Lens Type2.8/4/6/8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°;4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°;6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°;8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
- ApertureF2.0
- Lens MountM12
- Illuminator
- IR Range-I5: Up to 50 m,-I8: Up to 80 m
- Wavelength850 nm
- Video
- Max. Resolution3072 × 2048
- Main Stream50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm TriggerMotion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, face detection
- Face DetectionYes
- General
- Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
- Firmware Version5.6.3
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current-I5:12 VDC, 0.6 A, max. 7.5 W, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 9.5 W ;-I8: 12 VDC, 0.95 A, max. 11.5 W, PoE (802.3af, 36 V to 57 V), 0.35 A to 0.1 A, max. 12.5 W
- Camera DimensionCamera: Φ 104.8 × 299.7 mm (Φ 4.1" × 11.8");Package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
- Camera WeightCamera: 1200 g (2.7 lb.)
- Approval
- ProtectionIP67
