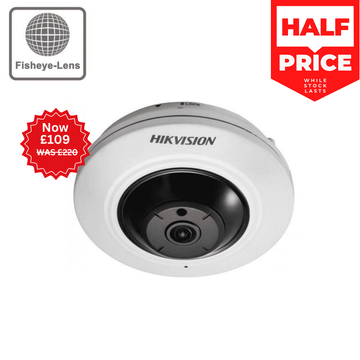

5MP Hikvision DS-2CD2955FWD-IS Fisheye Network Camera (Offer)
5MP Hikvision DS-2CD2955FWD-IS Fisheye Network Camera (Offer)
Description
Only available for qualified fish eye lens camera installers -
The DS-2CD2955FWD-IS is a 5MP internal fisheye camera with a 1.05mm fixed lens and infra-red LEDs effective up to 8m. This camera is for internal use only and has a variety of mounting options available.
The DS-2CD2955FWD-IS supports 14 different display modes and uses a range of features to enhance images such as wide dynamic range (WDR), 3D digital noise reduction technology (3D DNR) and back light compensation (BLC). It also uses motion detection, intrusion detection and line crossing detection.
This camera also as an audio and alarm I/O and uses H.265+ to greatly reduce the stress on bandwidth and storage. There is an SD card slot and it can be powered by a 12VDC power supply or PoE.
Remote access is possible through a browser or through the Hik-Connect app.
Features
- 5MP resolution
- 2560 x 1920
- 30 fps
- H.265+, H.265, H.264+, H.265 codec
- Supports 14 display modes
- Dual video streams
- Digital noise reduction technology
- Audio/Alarm I/O
- Up to 8m IR range
- Micro SD card slot
Specification
- Camera
- Image Sensor1/2.5" Progressive Scan CMOS
- Max. Resolution2560 × 1920
- Min. IlluminationColor: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter with auto switch
- Lens
- Focal Length & FOV1.05 mm, horizontal field of view: 180°, vertical field of view: 180°
- ApertureF2.2
- Lens MountM12
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 8 m
- Video
- Main Stream50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960),60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960),
- Sub-Stream50Hz: 25fps (352× 288, 704 × 576),60Hz: 30fps (352 × 240, 704 × 576),
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream
- Fisheye Display
- Mount Type Support table, wall, and ceiling
- Display Mode
Support 14 display modes in total (including display modes of different mount types):
Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
- Audio
- Audio Sampling Rate-S: Support
- Environment Noise Filtering-S: 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression -S: G.711/G.722.1/G.726/MP2L2/PCM, 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Bit Rate-S: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Network StorageNAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Image
- Wide Dynamic Range (WDR)120 dB
- Day/Night SwitchAuto/Schedule/Triggered by Alarm In (-S model supports)
- Image EnhancementWDR/3D DNR/Backlight Compensation/Defog/Distortion Correction
- Image SettingsSaturation, brightness, contrast, and sharpness are adjustable via client software or web browser
- Interface
- Audio-S: 1 audio input (line in), 1 audio output interface
- Alarm -S: 1 alarm input, 1 alarm output (12 VDC, max. 30 mA)
- On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, dynamic analysis, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
- LinkageTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- General
- Power DC 12V ± 25%, 2A, 5W,PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W,
- DimensionΦ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
- Startup and Operating Conditions-10 °C to +50 °C (-14 °F to +122 °F). Humidity 95% or less (non-condensing)
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Weight600 g (1.32 lbs.)
