5MP DS-2CE79H8T-AIT3ZF Hikvision Ultra Low Light Vari-focal Lens Turret 60M IR
5MP DS-2CE79H8T-AIT3ZF Hikvision Ultra Low Light Vari-focal Lens Turret 60M IR
Description

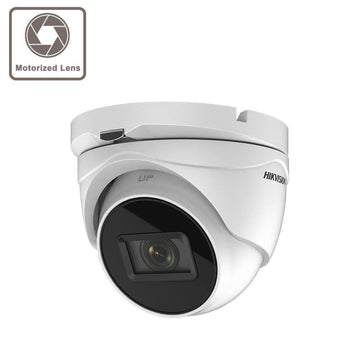

DS-2CE79H8T-AIT3ZF is Hikvision's 5MP HD-TVI Ultra Low Light turret camera with a 2.7-13.5mm vari-focal lens and up to 60m Smart IR illumination.
DS-2CE79H8T-AIT3ZF is Hikvisions 5MP ultra low light HD-TVI turret camera with 2.7-13.5mm motorised vari-focal lens, up to 60m smart IR and IP67 weather resistant rating.
This 4 in 1 HD analogue camera supports up to 5MP resolution output in TVI or AHD formats, 4MP in CVI format and standard CVBS format. This high performance camera incorporates Hikvision ultra low light sensor for superior low light sensitivity down to 0.003 Lux (F1.2) or 0 Lux with IR on.
Features
5MP high performance CMOS
Ultra Low Light 0.003 Lux (F1.2)
4 in 1, can be used as TVI, CVI, AHD or Analogue camera
2.7-13.5mm motorised vari-focal lens
True day/night
OSD menu
Smart IR
EXIR technology
Up to 60m IR distance
IP67 weatherproof
Up the Coax telemetry
12V DC
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/12.5s to 1/50, 000 s
NTSC: 1/15 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.7 mm to 13.5 mm motorized varifocal lens
- Focal Length & FOV92.3° to 29.3°
- Lens MountΦ14
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps
CVI: 4MP@25fps, 4MP@30fps
CVBS: PAL, NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementBLC, HLC
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- Dimension123.86 mm × 134.3 mm × 110.24 mm (4.88" × 5.29" × 4.34")
- WeightApprox. 630 g (1.39 lb.)
- Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ± 20%, 24 VAC ± 20%
- Consumption
Max. 10.5 W
- IR RangeUp to 60 m
- Approval
- ProtectionIP67
