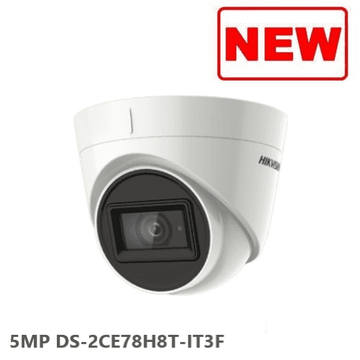

5MP DS-2CE78H8T-IT3F Hikvision Ultra Low Light HD-TVI 2.8mm Fixed Lens Turret Camera, 60m IR, IP67
5MP DS-2CE78H8T-IT3F Hikvision Ultra Low Light HD-TVI 2.8mm Fixed Lens Turret Camera, 60m IR, IP67
DS-2CE78H8T-IT3F is Hikvision's 5MP HD-TVI Ultra Low Light turret camera with a 2.8mm fixed lens and up to 60m Smart IR illumination.
DS-2CE78H8T-IT3F is Hikvisions 5MP ultra low light HD-TVI turret camera with 2.8mm fixed lens, up to 60m smart IR and IP67 weather resistant rating.
This 4 in 1 HD analogue camera supports up to 5MP resolution output in TVI or AHD formats, 4MP in CVI format and standard CVBS format. This high performance camera incorporates Hikvision ultra low light sensor for superior low light sensitivity down to 0.003 Lux (F1.2) or 0 Lux with IR on.
This camera features 2.8mm fixed lens providing a horizontal field of view of 98 Degrees, OSD menu (Up the coax UTC) and wide dynamic range
Features
- 5MP high performance CMOS
- 4 in 1, can be used as TVI, CVI, AHD or Analogue camera
- 2.8mm fixed lens
- True day/night
- OSD menu
- Smart IR
- EXIR 2.0 technology
- Up to 60m IR distance
- IP67 weatherproof
- Up the Coax telemetry
- 130dB wide dynamic range
- 12V DC
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, and 12 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 98°
3.6 mm, horizontal FOV: 78°
6 mm, horizontal FOV: 48°
8 mm, horizontal FOV: 37°
12 mm, horizontal FOV: 23°
- Lens MountM12
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- Image
- Image SettingsBrightness;Sharpness;Mirror;AGC
- Frame Rate
TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
CVI: 4 MP @ 25 fps, 4 MP @ 30 fps
CVBS: PAL, NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementBLC
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
- Event
- Motion Detection4 programmable motion areas
- General
- Power
12 VDC ± 25%, max. 5.8 W
*You are recommended to use one power adapter to supply the power for one camera.
- MaterialMain body: Metal, Enclosure: Plastic
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
- WeightApprox. 310 g (0.68 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67
