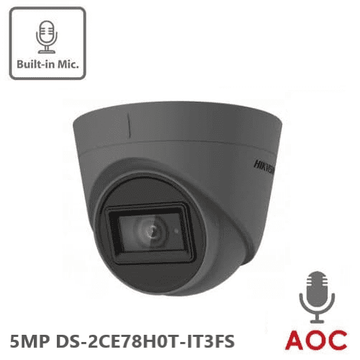

5MP DS-2CE78H0T-IT3FS Hikvision HD-TVI 2.8mm Lens Turret Camera, 40m Smart IR, Built-In Mic GREY
5MP DS-2CE78H0T-IT3FS Hikvision HD-TVI 2.8mm Lens Turret Camera, 40m Smart IR, Built-In Mic GREY
Please note that the microphone does not work on POC Recorders - Ensure you are using a compatible recorder, for advice please don't hesitate on contacting us.
5MP DS-2CE78H0T-IT3FS Hikvision HD-TVI 2.8mm Lens Turret Camera, 40m Smart IR, Built-In Mic GREY
DS-2CE78H0T-IT3FS is Hikvision's 5MP HD-TVI analogue turret camera with a 2.8mm fixed lens, up to 40m IR distance and audio over coax with built-in mic.
Features
- 5MP HD Video output
- Switchable TVI/AHD/CVI/CVBS
- 2.8mm fixed lens
- True day/night
- Up to 40m IR distance
- IP67 weatherproof
- Digital wide dynamic range
- Audio over coaxial cable, built in Mic
- 12V DC
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Material
Enclosure: Plastic
Main Body: Metal
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
- WeightApprox. 300 g (0.66 lb.)
- Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption
Max. 3.7 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
