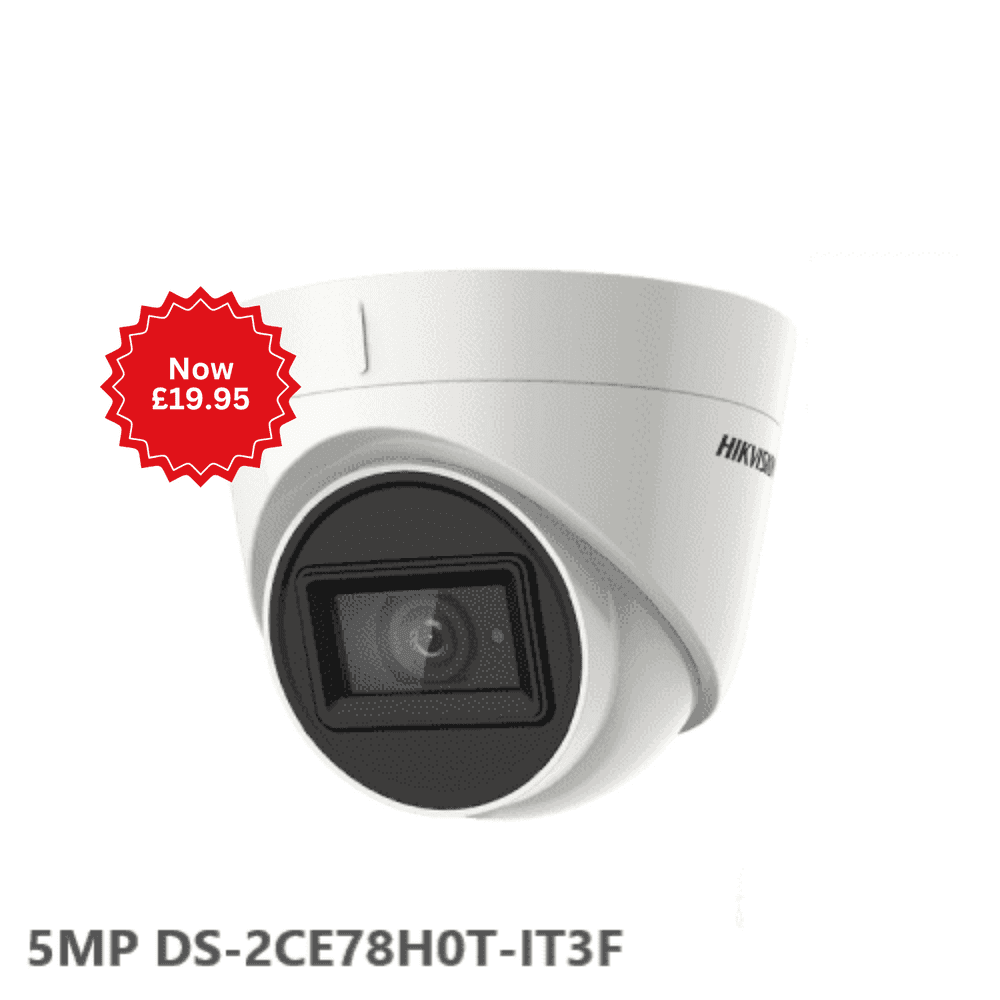

5MP DS-2CE78H0T-IT3F 3.6mm Hikvision HD-TVI Fixed Lens Turret Camera, 40m Smart IR
5MP DS-2CE78H0T-IT3F 3.6mm Hikvision HD-TVI Fixed Lens Turret Camera, 40m Smart IR
Description
The Hikvision DS-2CE78H0T-IT3F 5 MP Outdoor Turret Camera provides high definition analog output with a resolution of up to 2560 x 1944 pixels. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
Features
-
Minimum Illumination: 0.01 lux @ (/1.2, AGC on), 0 lux with IR
-
5 MP, 2560 × 1944 Resolution
-
3.6 mm Fixed Lens
-
4-in-1 Video Output (Switchable TVI/AHD/CVI/CVBS)
-
Smart IR, up to 131 ft (40 m) Range
-
12 VDC ±25%
Specification
- Camera
- Image Sensor5 MP CMOS image sensor
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Material
Front Cover: Plastic
Main Body: Metal
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
- WeightApprox. 303 g (0.67 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ±25%
- Consumption
Max. 4.3 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
