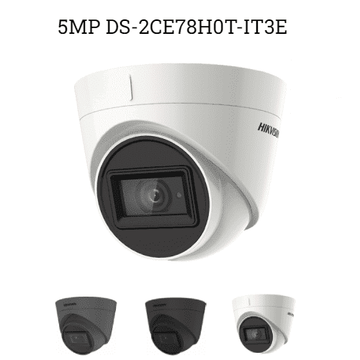

5MP DS-2CE78H0T-IT3E 2.8MM Hikvision fixed lens EXIR POC turret Camera
5MP DS-2CE78H0T-IT3E 2.8MM Hikvision fixed lens EXIR POC Turret Camera - Available in White, Grey and Black
POC - MAKING INSTALLATIONS A LOT SIMPLER!
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers this means a much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost effective and time saving solution to your TVI installations.
PLEASE NOTE: All PoC cameras can also work on non PoC recorders
1. All PoC capable TVI cameras can be powered locally via a separate power supply allowing them to be used on a none PoC TVI DVR
2. All none PoC TVI cameras can work on a PoC capable TVI DVR as the camera is powered via a separate power supply and PoC will
only transmit when requested to by a compatible camera
3. PoC transmission has generally been used through RG59 coaxial or similar cable, however with the release of our HAY-HDVB01POC-PT it can now also be used through CAT5 offering even greater flexibility of install.
Features
- 5MP high performance CMOS
- Adopts HD-TVI technology
- 2.8mm fixed lens
- True day/night
- OSD menu
- Smart IR
- EXIR technology
- Up to 40m IR distance
- Up the Coax telemetry
- Digital wide dynamic range
- PoC.af
- 12V DC
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124°
3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Smart IR
- Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement DWDR, BLC, HLC, Global
- Noise Reduction2D DNR
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video Output 1 HD analog output
- General
- Material
Front Cover: Plastic
Main Body: Metal
- Dimension91.0 mm × Ø109.8 mm (3.58" × Ø4.32")
- WeightApprox. 326 g (0.72 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ±25%/PoC.af
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
- Consumption
Max. 3 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
