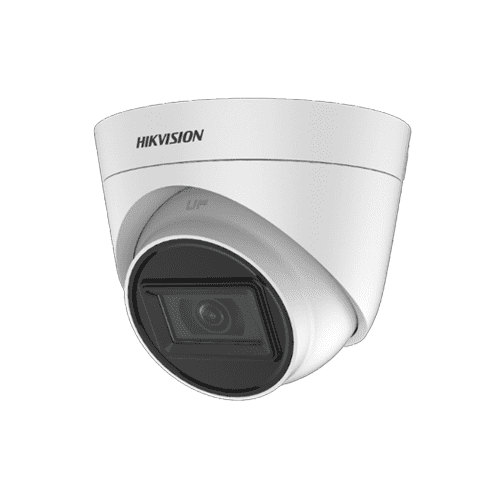

5MP DS-2CE78H0T-IT1F(2.4mm)(C) Fixed Turret Camera - 2.4MM lens
5MP DS-2CE78H0T-IT1F(2.4mm)(C) Fixed Turret Camera - 2.4MM Lens
Upgrade your surveillance system with the 5MP DS-2CE78H0T-IT1F Fixed Turret Camera, offering versatile compatibility and high-resolution imaging for comprehensive security solutions.
Key Features
- 5 MP turret camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Enhance the security of your property with the 5MP DS-2CE78H0T-IT1F Fixed Turret Camera. Boasting a high-resolution 5MP sensor, this camera delivers crisp and detailed images, enabling you to capture crucial details with clarity.
With its 2.4mm lens, the camera offers wide-angle coverage, ensuring comprehensive monitoring of your surroundings. Whether you're securing a small office space or a larger outdoor area, this camera provides the coverage you need for effective surveillance.
Featuring multi-format support, the DS-2CE78H0T-IT1F is compatible with TVI, AHD, CVI, and CVBS formats, offering seamless integration with various surveillance systems. This flexibility allows you to adapt the camera to your specific requirements, making it an ideal choice for both new installations and system upgrades.
Powering the camera is simple and reliable, thanks to its compatibility with 12VDC ± 25% power supplies. This ensures stable performance, even in challenging environmental conditions, providing you with peace of mind knowing your surveillance system is always operational.
Upgrade your surveillance capabilities with the 5MP DS-2CE78H0T-IT1F Fixed Turret Camera, combining high-quality imaging, versatile compatibility, and reliable performance for comprehensive security solutions.
Specification
- Camera
- Image Sensor5 MP CMOS image sensor
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142°
2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°
6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Material
Front Cover: Plastic
Main Body: Metal
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.60")
- WeightApprox. 303 g (0.67 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ±25%
- Consumption
Max. 4.3 W
- IR RangeUp to 30 m
- Approval
- ProtectionIP67
