5MP DS-2CE72HFT-E /Grey POC ColorVu 2.8 mm Fixed Lens Turret Camera, 20m White Light
5MP DS-2CE72HFT-E /Grey POC ColorVu 2.8 mm Fixed Lens Turret Camera, 20m White Light
5MP DS-2CE72HFT-E /Grey POC ColorVu 2.8 mm Fixed Lens Turret Camera, 20m White Light
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers, this means much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost-effective and time-saving solution to your TVI installations.

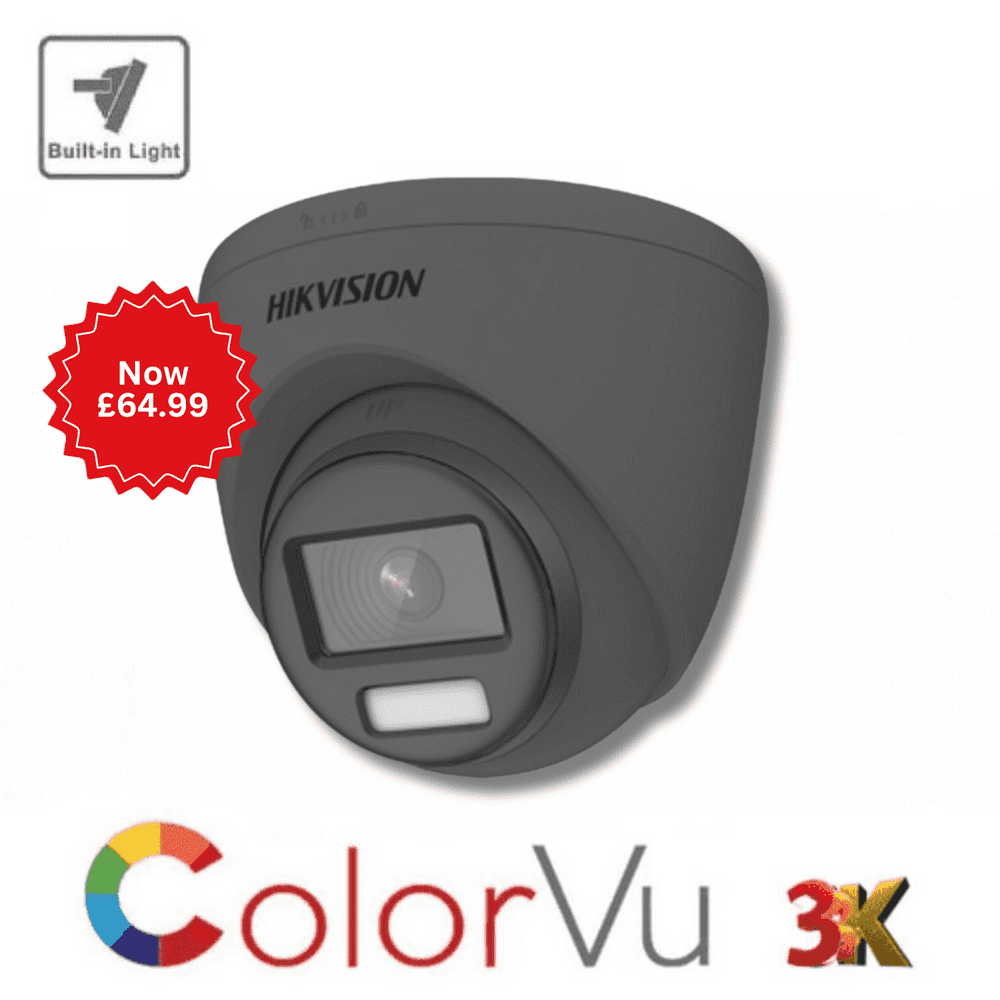

DS-2CE72HFT-E is Hikvisions 5MP ColorVu HD-TVI turret camera with 2.8 mm fixed lens, up to 20m white light distance and IP67 weather resistant rating.
This 4 in 1 HD analogue camera supports up to 5MP resolution output in TVI or AHD formats, 4MP in CVI format and standard CVBS format. This high performance camera incorporates Hikvision ultra low light sensor for superior low light sensitivity down to 0.0005 Lux (F1.0) or 0 Lux with IR on.
Features
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 24/7 color imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens options
- Smart Light, up to 20 m white light distance
- Water and dust resistant (IP67)
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 58.6°, diagonal FOV: 106.2°
- Lens MountM16
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 20 m
- Smart Supplement LightYes
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness;Sharpness;Mirror;AGC;Anti-Banding
- Frame Rate5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
- Day/Night ModeColor
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementBLC;HLC;Global;HLS
- Noise Reduction3D DNR/2D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output
- AlarmSolid Light Alarm (White Light)
- General
- Power
12 VDC±25%/PoC.af, max. 4 W
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
- MaterialMain body: Metal, Enclosure: Plastic
- DimensionΦ 109.82 mm × 85.56 mm (4.32" × 3.37")
- WeightApprox. 350 g (0.77 lb.)
- Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67
