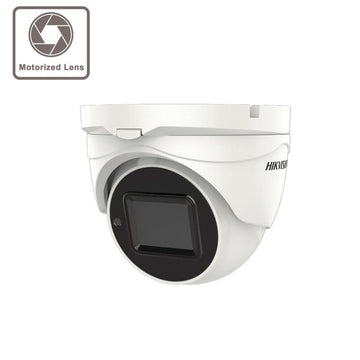

5MP DS-2CE56H0T-IT3ZF Motorized Varifocal Turret ( 2.7mm - 13.5mm) Camera
5MP DS-2CE56H0T-IT3ZF Motorized Varifocal Turret ( 2.7mm - 13.5mm) Camera
Information
Hikvision DS-2CE56H0T-IT3ZF 5MP Turret Camera
- 5MP high performance COMS
- 2560 × 1944 resolution
- EXIR 2.0, smart IR, up to 40 m IR distance
- OSD menu, 2D DNR, DWDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- Up the coax (HIKVISION-C)
Specification
- Camera
- Image Sensor5 MP CMOS image sensor
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Lens
- Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
- Focal Length & FOV95.7° to 29.1°
- Lens MountΦ 14
- Image
- Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
- Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)DWDR
- Image EnhancementBLC
- White BalanceATW/MWB
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- Dimension123.86 mm × 134.3 mm × 110.11 mm (4.88" × 5.29" × 4.38")
- WeightApprox. 580 g (1.28 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- Power Supply12 VDC ±25%
- ConsumptionMax. 6.3 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
