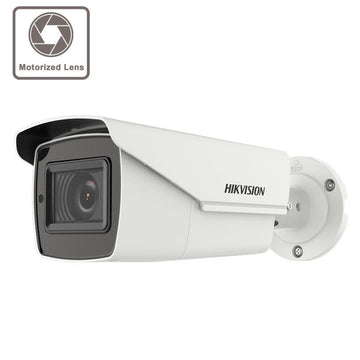

5MP DS-2CE16H0T-IT3ZE Motorized lens EXIR POC bullet camera
DS-2CE16H0T-IT3ZE Hikvision 5Mp CCTV camera.
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers, this means much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost-effective and time-saving solution to your TVI installations.
PLEASE NOTE: All PoC cameras can also work on non PoC recorders
Hikvision 5MP motorized varifocal lens EXIR bullet camera.
- 5MP high-performance CMOS
- Adopts HD-TVI technology
- 2.7 - 13.5mm motorized varifocal lens
- True day/night
- OSD menu
- Smart IR
- EXIR technology
- Up to 40m IR distance
- IP67 weatherproof
- Up the Coax telemetry
- Digital wide dynamic range
- PoC.at
- 12V DC
- 3-year warranty
Specification
- Camera
- Image Sensor5 MP CMOS image sensor
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
- Focal Length & FOV95.7° to 29.1°
- Lens MountΦ 14
- Image
- Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
- Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Day/Night ModeSmart/color/BW(Black and White)
- Image EnhancementBLC
- White BalanceATW/MWB
- AGCLow/middle/high
- Interface
- Video Output1 HD analog output
- General
- MaterialFront cover: Metal Main body: Plastic Bracket: Metal
- Dimension84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
- WeightApprox. 685 g (1.51 lb.)
- Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- Power Supply12 VDC ±25%, PoC.at
- ConsumptionMax. 7.8 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
