5MP DS-2CE12HFT-F Hikvision ColorVu bullet 40M White light IP67
Information
5MP DS-2CE12HFT Hikvision ColorVu bullet 40M White Light IP67

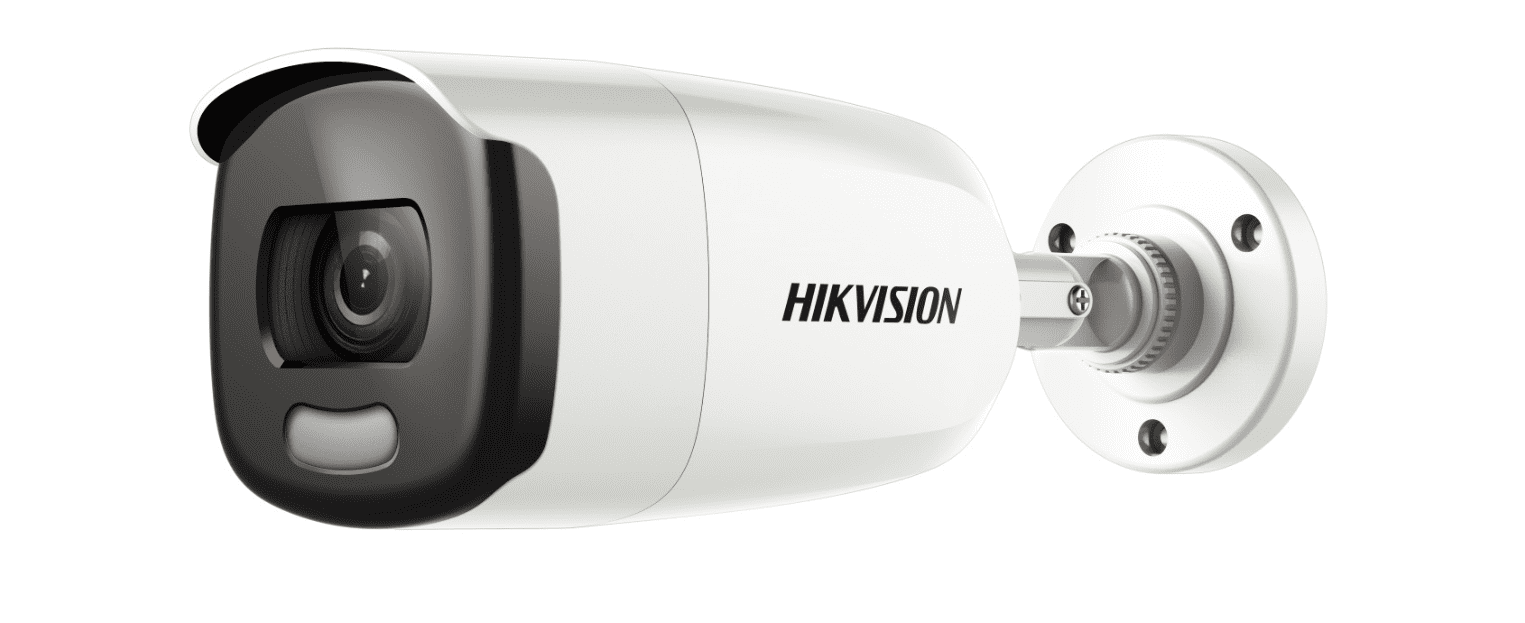

Hikvision ColorVu CCTV bullet camera DS-2CE12HFT-F 5MP with wide angle fixed lens.
- 5MP high performance CMOS
- 4 in 1, can be used as TVI, CVI, AHD or Analogue camera

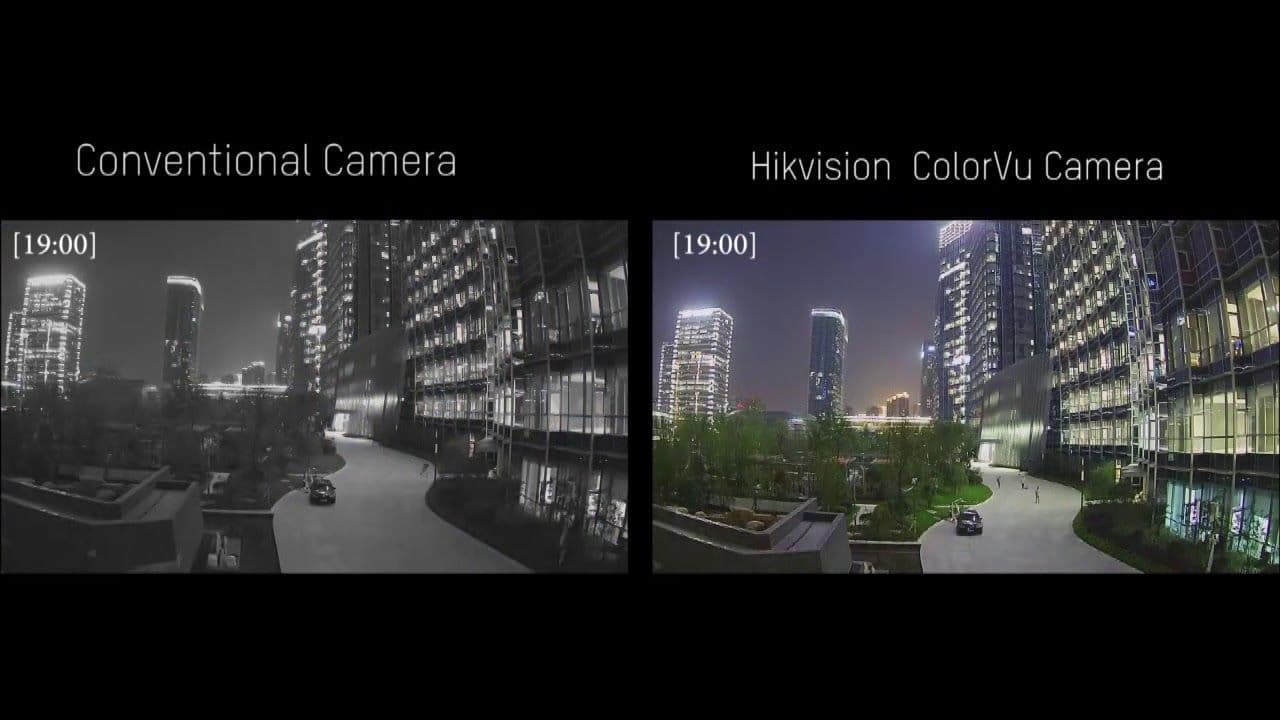

- Full time colour
- 2.8mm fixed lens
- True day/night
- OSD menu
- Up to 40m white light distance
- IP67 weatherproof
- Up the Coax telemetry
- 120dB wide dynamic range
- 12V DC
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
- Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Day & NightColor
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type3.6 mm, 6 mm fixed lens
- Focal Length & FOV80.1° (3.6 mm), 49.3° (6 mm)
- Lens MountM16
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40m
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart Light, AGC
- Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
- Day/Night ModeColor
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementBLC, HLC
- White BalanceAuto/Manual
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- Dimension82.6 mm × 77.1 mm × 220.4 mm (3.25" × 3.04" × 8.68")
- WeightApprox. 565 g (1.25 lb.)
- Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power
12 VDC ± 25%, Max. 4.9 W
*You are recommended to use one power adapter to supply the power for one camera.
- Approval
- ProtectionIP67
