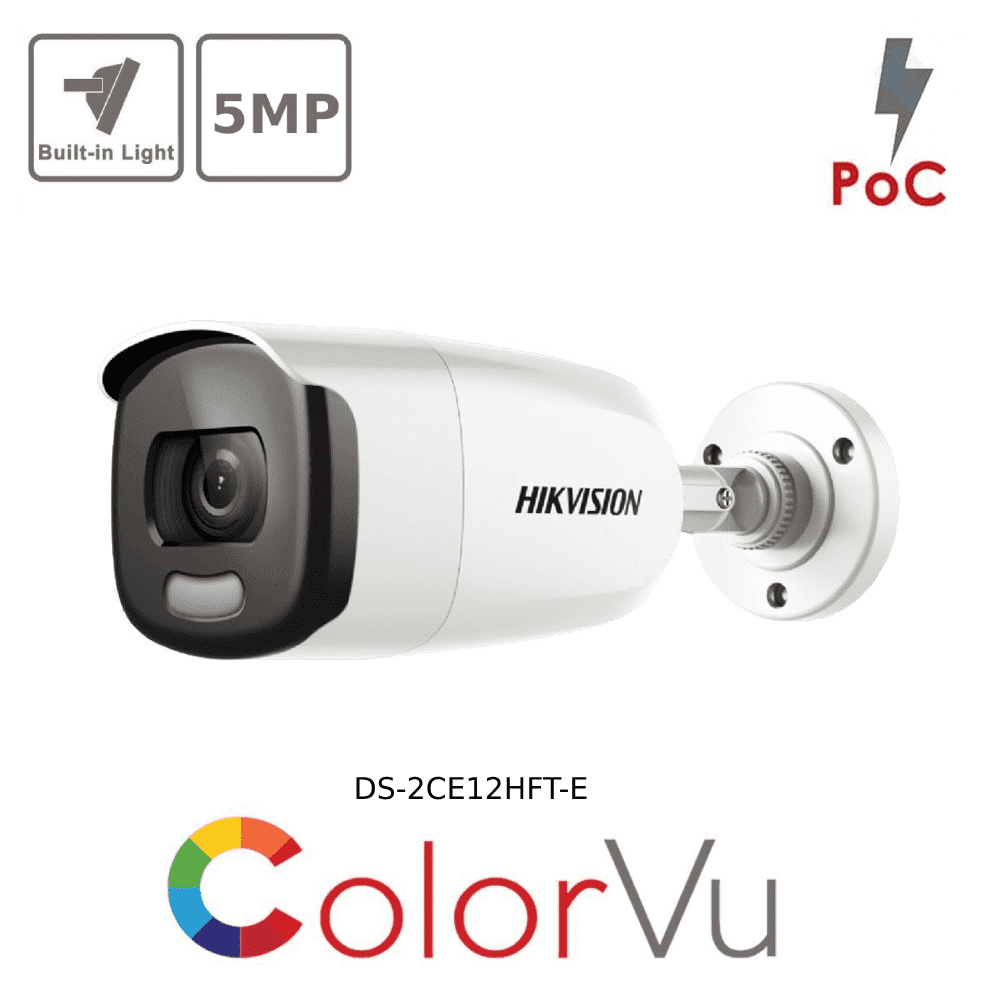

5MP DS-2CE12HFT-E Hikvision POC ColorVu bullet 40M White light IP67
5MP DS-2CE12HFT-E Hikvision POC ColorVu bullet 40M White light IP67
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. For installers, this means much more time and cost efficient
installation.
PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost-effective and time-saving solution to your TVI installations.
Features
- 5MP high performance CMOS
- 4 in 1, can be used as TVI, CVI, AHD or Analogue camera
- Full time colour
- 2.8mm fixed lens
- True day/night
- OSD menu
- Up to 40m white light distance
- IP67 weatherproof
- Up the Coax Power
- 120dB wide dynamic range
- 12V DC
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 58.6°, diagonal FOV: 106.2°
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Mirror, Sharpness, Anti-Banding, AGC
- Frame Rate5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
- Day/Night ModeColor
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementWDR, BLC, HLC, Global, HLS
- Noise Reduction3D DNR/2D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output
- General
- MaterialMetal
- Dimension82.6 mm × 77.1 mm × 220.4 mm (3.25" × 3.04" × 8.68")
- WeightApprox. 600 g (1.32 lb.)
- Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power
12 VDC±25%/PoC.at, Max. 5.4 W
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
- Approval
- ProtectionIP67
