4MP Hikvision DS-7332HQHI-K4 Hikvision 32 CHANNEL TURBO HD DVR 4 Bay (Offer)
4MP Hikvision DS-7332HQHI-K4 Hikvision 32 CHANNEL TURBO HD DVR 4 Bay (Offer)
4MP Hikvision DS-7332HQHI-K4 Hikvision 32 CHANNEL TURBO HD DVR 4 Bay (Offer)
Description

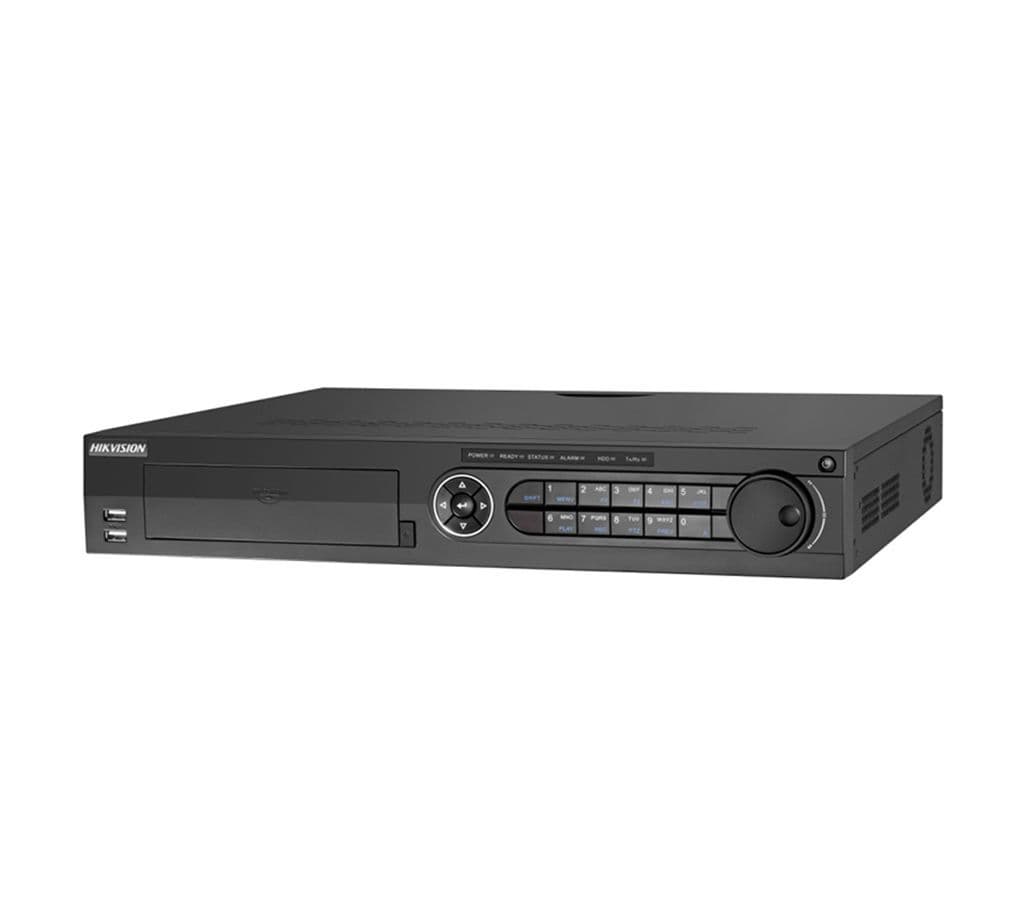

The Hikvision DS-7332HQHI-K4 4-Bay Turbo HD DVR Digital Video Recorder is designed to record and playback IP camera footage in up to 4 megapixel recording resolution, making it ideal for home and business use. This Hikvision DS-7332HQHI-K4 4-Bay Turbo HD DVR Digital Video Recorder supports 4 Sata Interfaces, and can work both along as a recorder and cooperate with other devices to form a comprehensive surveillance system.
Specifications
Appearance Design
Typical chassis design to guarantee the low noise and environmental protection of the device
Front slot for insertion of DVD-R/W with bracket to make it more convenient to install and maintain
Video Input and Transmission
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Up to 6 MP IP cameras input
Long distance transmission over UTP and coaxial cable
Compression and Recording
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analogue cameras
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
Supports 4 MP lite
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Supports POS triggered recording and POS information overlay
Video Output
Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 ×2160) resolution
Separate CVBS output
Storage and Playback
Four SATA interfaces (up to 8 TB capacity per HDD) and 1 eSATA interface
16-ch synchronous playback
Smart search for efficient playback
Supports playback by main stream, or sub-stream for IP cameras
Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
Supports multiple VCA (Video Content Analytics) events for both analogue and smart IP cameras
Supports 4-ch line crossing detection and intrusion detection, and 1-ch sudden scene change detection
VQD (Video Quality Diagnostics)
Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
Hik-Connect and DDNS (Dynamic Domain Name System) for easy network management
One RJ45 10M/100M/1000M Ethernet network interface
Output bandwidth limit configurable
Statistics
|
Video/Audio Input |
||
|
Audio Input: |
4-ch |
|
|
Video Compression: |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
|
Analog and HD-TVI video input: |
32-ch,BNC interface (1.0Vp-p, 75 )connection |
|
|
Supported camera types: |
Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
|
|
IP Video Input: |
8-ch(up to 40ch) Up to 6MP resolution |
|
|
Video Input Interface: |
BNC (1.0 Vp-p, 75) |
|
|
Audio Compression: |
G.711u |
|
|
Audio Input Interface: |
4-ch, RCA (2.0 Vp-p, 1 K) |
|
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 K) (using audio input) |
|
|
Video/Audio Output |
||
|
CVBS Output: |
1-ch,BNC(1.0Vp-p,75),resolution:PAL:704x576,NTSC:704x480 |
|
|
HDMI/VGA Output: |
HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz |
|
|
Recording resolution: |
When 1080p Lite mode not enabled: |
|
|
Frame Rate: |
Main stream: |
|
|
Video Bit Rate: |
32 Kbps-6 Mbps |
|
|
Stream Type: |
Video/Video&Audio |
|
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 k) (independent) |
|
|
Audio Output: |
1-ch RCA(Linear, 1k) |
|
|
Dual Stream: |
Support |
|
|
Playback Resolution: |
4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
|
|
Synchronous Playback: |
16-ch |
|
|
Network management |
||
|
Remote connections: |
128 |
|
|
Network protocols: |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
|
|
Hard Disk Driver |
||
|
Interface Type: |
4 SATA Interfaces |
|
|
Capacity: |
Up to 10 TB capacity for each disk |
|
|
e-SATA Interface: |
1 eSATA interface |
|
|
External Interface |
||
|
Network Interface: |
1; 10M / 100M self-adaptive Ethernet interface |
|
|
USB Interface: |
2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
|
|
Alarm Input: |
16-ch |
|
|
Alarm Output: |
4-ch |
|
|
General |
||
|
Power Supply: |
100 to 240 VAC |
|
|
Consumption: |
45W(without hard disks) |
|
|
Working Temperature: |
-10 oC to +55 oC (+14 oF to +131 oF) |
|
|
Working Humidity: |
10% to 90% |
|
|
Dimensions: |
440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) |
|
|
Weight: |
7 kg (15.4 lb) |
|
