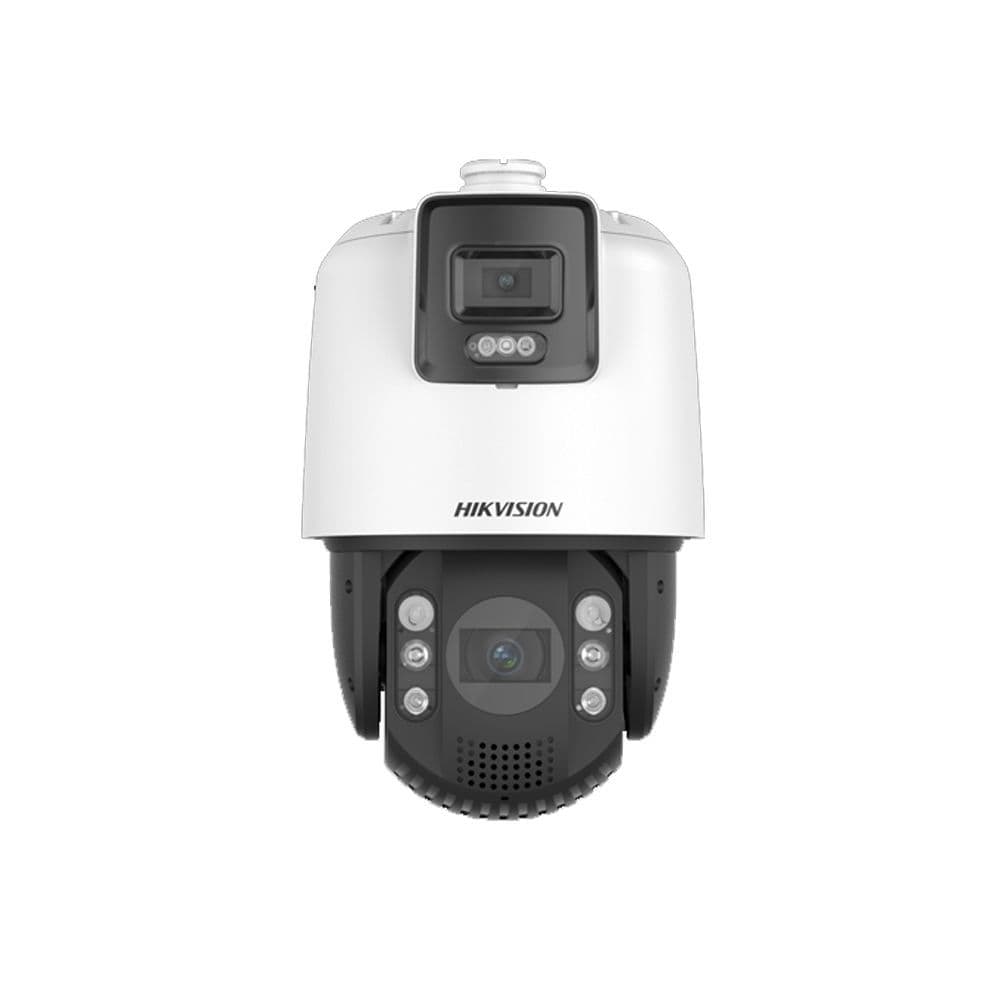

4MP Hikvision DS-2SE7C144IW-AE(32x/4)(S5) Acusense 32x PTZ + 4MM PanoVu (Offer)
4MP Hikvision DS-2SE7C144IW-AE(32x/4)(S5) Acusense 32x PTZ + 4MM PanoVu (Offer)
Hikvision DS-2SE7C144IW-AE(32X/4)(S5) 4 MP 32 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 32 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Features
- 1/2.8" Progressive Scan CMOS
- Min. illumination: [PTZ channel]Color0.005Lux @ (F1.2AGC ON),B/W0.001Lux @ (F1.2AGC ON) ,[panoramic channel]0.005Lux @(F1.6,AGC ON) ,0 Lux with IR
- 32× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
- Up to 150 m IR distance
- 24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
- Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable
Specification
- Camera
- Image Sensor[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
- Max. Resolution[panoramic channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440
- Min. Illumination
[panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR;
[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Day & NightICR
- Zoom16x digital
- Slow Shutteryes
- HLCyes
- 3D DNRyes
- Optical Zoom32x
- Lens
- Focal Length[panoramic channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
- FOV
[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°;
[PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)
- Focussemi-auto||manual||auto
- Aperture[panoramic channel]: F1.6; [PTZ channel]: F1.5
- Zoom Speed[PTZ channel]: approx. 5.6 s
- Illuminator
- Supplement Light Range[PTZ channel]: up to 200 m; [panoramic channel]: up to 30 m
- Visual Alarm30 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional Panyes
- Presets300
- Preset Freezingyes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output||关闭
- Power-off Memoryyes
- Video
- Main Stream
[panoramic channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
[panoramic channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
[panoramic channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265||H.264||MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile||main profile||high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||AAC||PCM
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filteringyes
- Network
- ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
- Simultaneous Live View20
- APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- User/Host32
- SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
- Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
- ClientiVMS-4200||Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Parameters Switch[panoramic channel]: yes; [PTZ channel]: yes
- Image Settingssaturation||brightness||contrast||sharpness
- Day/Night Switchday, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)120 dB WDR
- SNR＞52dB
- Defogyes
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Maskpolygon region ||mosaic mask ||mask color configurable||[panoramic channel] 8 masks, [PTZ channel] 24 masks
- Regional Focusyes
- Regional Exposureyes
- Interface
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,1 audio output, line level, impedance: 600 Ω
- Alarm2 input(s), 1 output(s)
- Resetyes
- Event
- Basic Eventmotion detection||alarm input||alarm output||video tampering alarm||exception
- Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
- Linkagepreset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||smart tracking||audible warning||white light flashing
- Smart Trackingmanual tracking||panorama tracking||event tracking||auto-tracking||tracking takeover
- Deep Learning Function
- Face CaptureSupport detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
- General
- Power24 VAC, Hi-PoE
- DimensionØ220 mm × 382.1 mm (Ø 8.7" × 15.0")
- WeightApprox. 6 kg (13.23 lb.)
- MaterialADC12
- Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
- General Functionmirror, password protection, watermark, IP address filter
- DemistDemist by heating the glass
- Power Consumption and CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Approval
- ProtectionIP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
