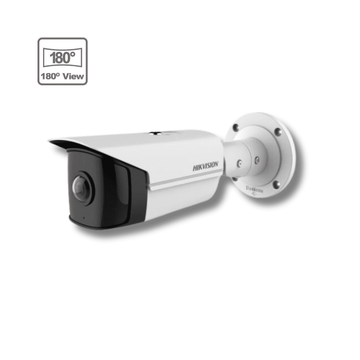

4MP Hikvision DS-2CD2T45G0P-I 180° IP Ultra Wide Bullet Camera 1.68mm
4MP Hikvision DS-2CD2T45G0P-I 180° IP Ultra Wide Bullet Camera 1.68mm
The Hikvision DS-2CD2T45G0P-I is an IP bullet camera with an ultra wide 1.68mm lens that can offer a full 180° viewing angle and an Infrared range of up to 20m. The high quality 4MP resolution is complemented by 120 dB WDR technology which offers clear imaging against strong back light.
The below video is from a higher resolution camera with a similar field of view.
Facial detection software will analyse images and determine the presence of a human face. When a face is detected, the DS-2CD2T45G0P-I captures its position, size, and expression. The video stream will judge whether there is a human face, improving accuracy and reducing false alarms.

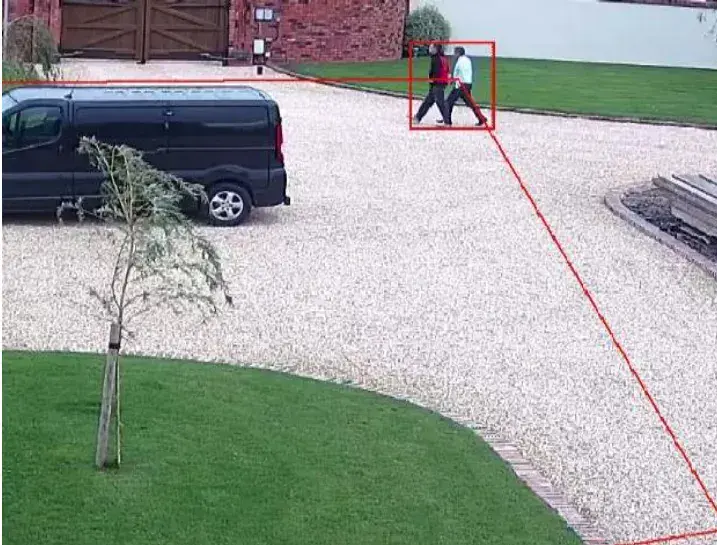

Line Cross Detection technology is a useful security feature to alert you in the event of a person or object crossing a pre-determined line. A line or box can be drawn straight onto the cameras view feed in any position which is then monitored by the system. If any person or object breaks the line you will be alerted immediately. This is useful for covering access points, driveways, paths & garden perimeters.
The DS-2CD2T45G0P-I will also recognise suspicious activity using Loitering Filter technology.

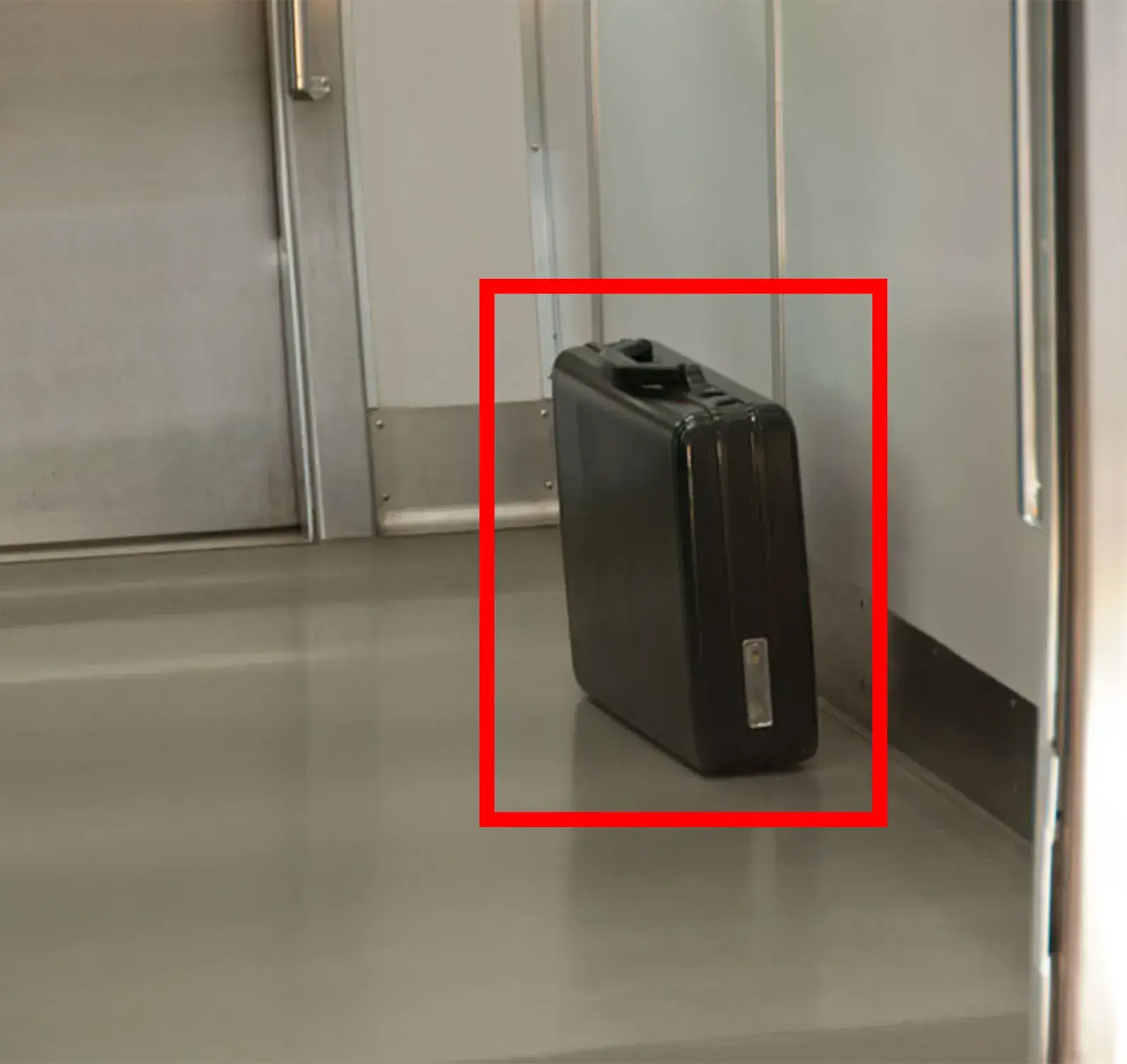

The Unattended baggage detection on the DS-2CD2T45G0P-I can detect objects that have been left behind by a subject. In the most extreme example it can help to detect if a malicious package has been planted in a public space.
The Object removal detection can help protect against theft by scanning the environment and alerting you if camera sees that an object is no longer there. This is particularly useful in setting such as shops and exhibitions.
Hikvision Deep Learning
Summary of features
- Ultra wide 1.68mm lens
- 180° Viewing Angle
- 360° Pan
- Facial detection software
- Line crossing detection
- Unattended baggage detection
- Object removal detection
- Enter and loiter Detection
- 1/2.7" Progressive Scan CMOS
- 2688 × 1520 @ 25fps
- 120dB WDR
- 3D Digital Noise Reduction
- Supports H.265, H.265+, H.264, H.264+
- Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
- IP67
Specification
- Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
- Min. Illumination 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night ICR Cut
- Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture. Trigger recording: memory card, network storage, pre-record and post-record. Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email. Trigger notification: HTTP, ISAPI, alarm output, Email
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focus Fixed
- Lens Type & FOV 1.68mm @ F2.0, horizontal FOV 180°, vertical FOV 101°, diagonal FOV 180°
- Aperture F2.0
- Lens Mount M12
- DORI
- DORI Detect: 3.6 m, observe: 1.4 m, recognize: 0.8 m, identify: 0.4 m
- Illuminator
- IR Range 20 m
- Wavelength 850nm
- Smart Supplement Light Yes
- Video
- Max. Resolution 2688 × 1520
-
Main Stream
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 x 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 x 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264 /MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR/VBR
- Stream Type Main stream, Sub-stream
- Scalable Video Coding (SVC) H.264, H.265
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
-
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
-
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage micro SD/SDHC /SDXC (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in free live view: Chrome45.0+, Firefox52.0+
Local service: Chrome41.0+, Firefox30.0+
- Image
- Day/Night Switch Day, Night, Atuo, Schedule
- Image Enhancement BLC;HLC;EIS;Lens Distortion;3D DNR
- Image Settings Saturation;brightness;contrast;sharpness;rotate mode;white balance;AGC
- SNR ≥ 50 dB
- Privacy Mask 4 regions of privacy mask
- Interface
- On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart Event Line crossing detection, intrusion detecction, unattended baggage detextion, object removal detection, face detection, scene change detection
- General
-
Web Client Language
32 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function privacy mask;heart;mirror;flash log;password reset via e-mail;pixel counter
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%; PoE: 802.3af, Class 3
-
Power Consumption and Current
12 VDC, 0.6 A, max. 7.2W
PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W
- Power Interface Φ5.5 mm coaxial power plug
- Material Metal
- Camera Dimension Camera: Φ105 × 278 mm (Φ4.1″ × 10.9″)
- Package Dimension 386 × 156 × 155 mm (15.20″ × 6.14″ × 6.10″)
- Camera Weight 570 g (1.26 lb.)
- With Package Weight 760 g (1.68 lb.)
- Approval
- Class Class B
- Protection IP67
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
