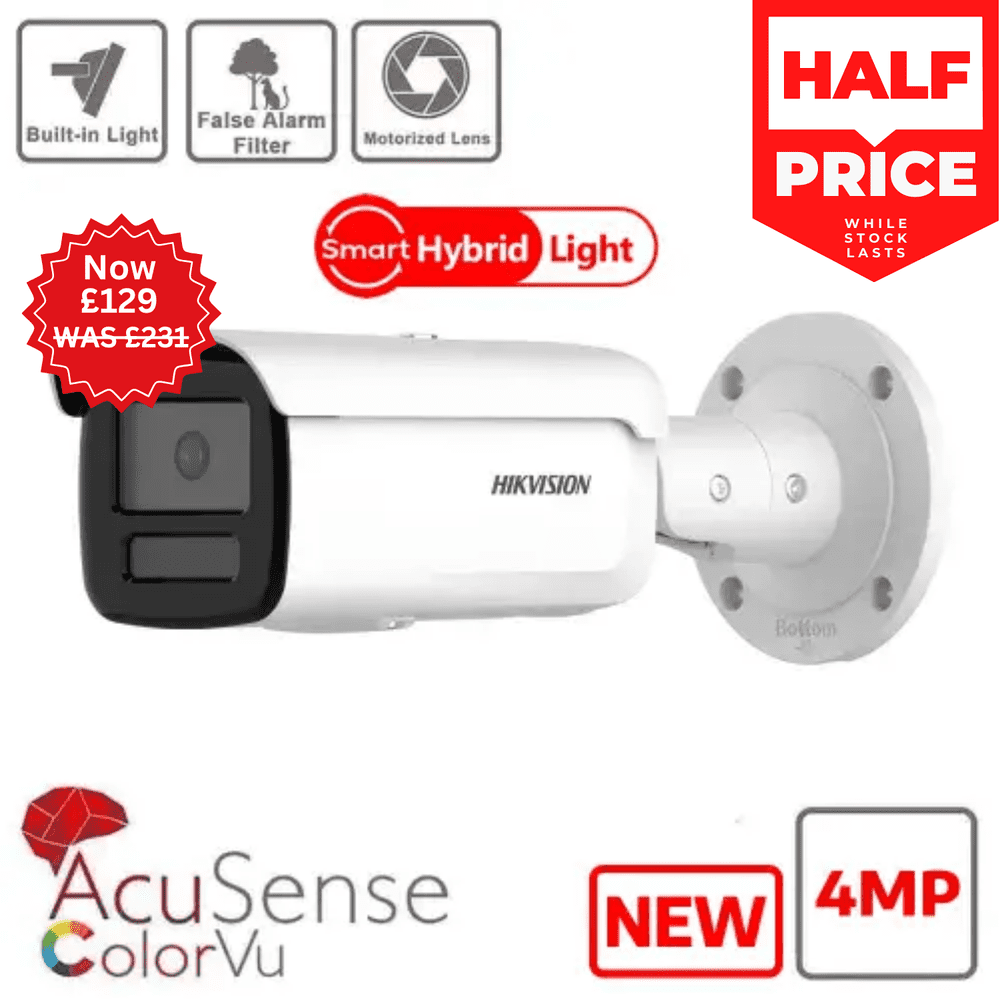

4MP Hikvision DS-2CD2647G2HT-LIZS(2.8-12mm)(eF) Varifocal Motorized Hybrid IR ColorVu IP (Offer)
4MP Hikvision DS-2CD2647G2HT-LIZS(2.8-12mm)(eF) Varifocal Motorized Hybrid IR ColorVu IP (Offer)
4MP Hikvision DS-2CD2647G2HT-LIZS(2.8-12mm)(eF) Varifocal Motorized Hybrid IR + ColorVu IP Bullet Camera (Offer)
Conventional IR cameras only render black and white images at night, resulting in massive, critical colour-related information loss. To resolve this issue, our Smart Dual-light Cameras feature smart supplemental lighting with optional IR and visible white lighting.
When a target is detected, the white light turns on to not only deter intruders but also record colourful imaging with key information. When no target appears in the monitoring area, the white light turns off and the IR light turns on, which intelligently reduce light pollution in the area.
Features
- High quality imaging with 4MP resolution
- Smart Dual-Light: advanced technology with long range
- Clear imaging against strong back light due to 130dB WDR technology
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67) and vandal resistant (IK10)
Specification
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0008 Lux @ (F1.2, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
- Lens MountIntegrated
- Iris TypeFixed
- ApertureF1.2
- Depth of Field1 m to ∞
- DORI
- DORI
Wide: D: 60.0m, O: 23.8 m, R: 12.0 m, I: 6.0 m
Tele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)130 dB
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event
Scene change detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output
- Deep Learning Function
- Face CaptureYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 18 W
- MaterialFront cover: Metal, body: Metal, bracket: Metal
- Dimension298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")
- Package Dimension386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
- WeightApprox. 1085 g (2.4 lb.)
- With Package WeightApprox. 1639 g (3.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- EnvironmentCE-RoHS: 2011/65/EU
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
