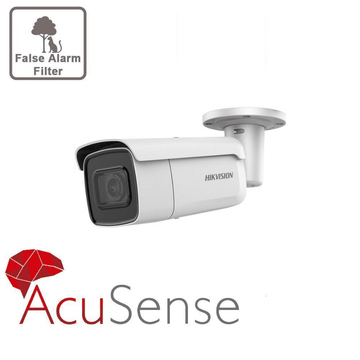

4MP Hikvision DS-2CD2646G1-IZS AcuSense IR Motorized Varifocal Bullet Network Camera
4MP Hikvision DS-2CD2646G1-IZS AcuSense IR Motorized Varifocal Bullet Network Camera
The Hikvision DS-2CD2646G1-IZS is a 4MP varifocal bullet camera featuring Hikvision's AcuSense Technology.
As the name implies, AcuSense technology accurately senses motion in security hardware. The primary function of AcuSense is target classification; empowered by deep learning algorithms this technology is able to distinguish people and vehicles from other moving targets.
Featuring a varifocal 2.8~12mm lens, which provides a 101° ~ 29° horizontal field of view, users are able to select the focal length that is ideal for their application.
Equipped with IR LEDs effective up to 50m, and an IP66 weather-resistant and IK10 vandal-resistant rated housing, the DS-2CD2646G1-IZS can be used in a wide range of outdoor applications.
Features 5 Different Behaviour Analysis:
- Line Crossing Dtection
- Intrusion Detection
- Region Entrance Detection
- Region Exit Detection
- False Alarm Filter by target classification
Features
- IP67, IK10
- False alarm filter by target classification
- 12 VDC & PoE (802.3at, class 4)
- H.265, H.264
- Support on-board storage, up to 128 GB
- 120dB WDR
- Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR
- BLC/3D DNR/ROI
- IR range: Up to 50m
- Max. 2688 × 1520 @ 30fps
Specification
- Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
- Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focus Auto
- Lens Type 2.8 mm to 12 mm
- FOV Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34°
- Aperture F1.4
- Lens Mount Φ14
- Aperture Type Fixed
- Illuminator
- IR Range Up to 50 m
- Wavelength 850 nm
- Video
- Max. Resolution 2688 × 1520
- Main Stream 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720),60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- Scalable Video Coding (SVC) H.265 encoding and H.264 encoding support
- Region of Interest (ROI) Support 1 fixed region for main stream and sub stream separately
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8kHz/16kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser Plug-in required live view:,IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
- Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In(-S)
- DNR 3D DNR
- Image Enhancement BLC/3D DNR
- Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Interface
- Audio 1 audio input (line in), 1 audio output (line out), mono sound
- Alarm 1 alarm input, 1 alarm output
- On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart Event Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
- General
- Firmware Version V5.5.63
- General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
- Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4)
- Power Consumption and Current 12 VDC, 1.3 A, max. 15.5 W,PoE: (802.3at, 42.5 VDC to 57 VDC), 0.5 A to 0.3 A, max. 19 W
- Camera Dimension Camera: Φ 105 × 297.5 mm (Φ 4.1" × 11.7")
- Camera Weight Camera: 1400 g (3.1 lb.),With package: 1750 g (3.9 lb.)
- Approval
- Protection IP67，IK10
