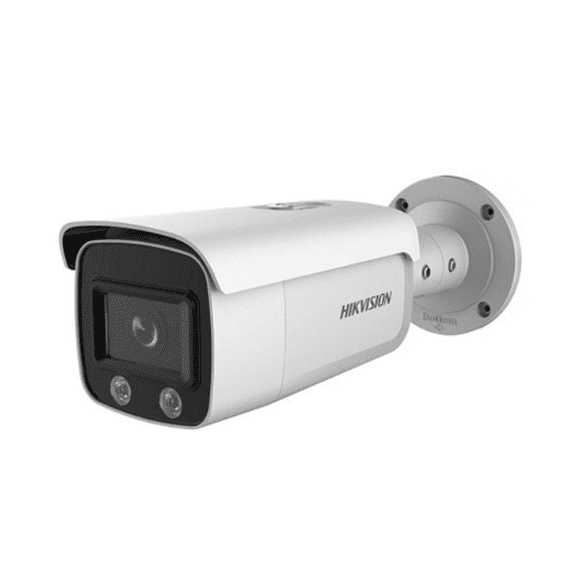

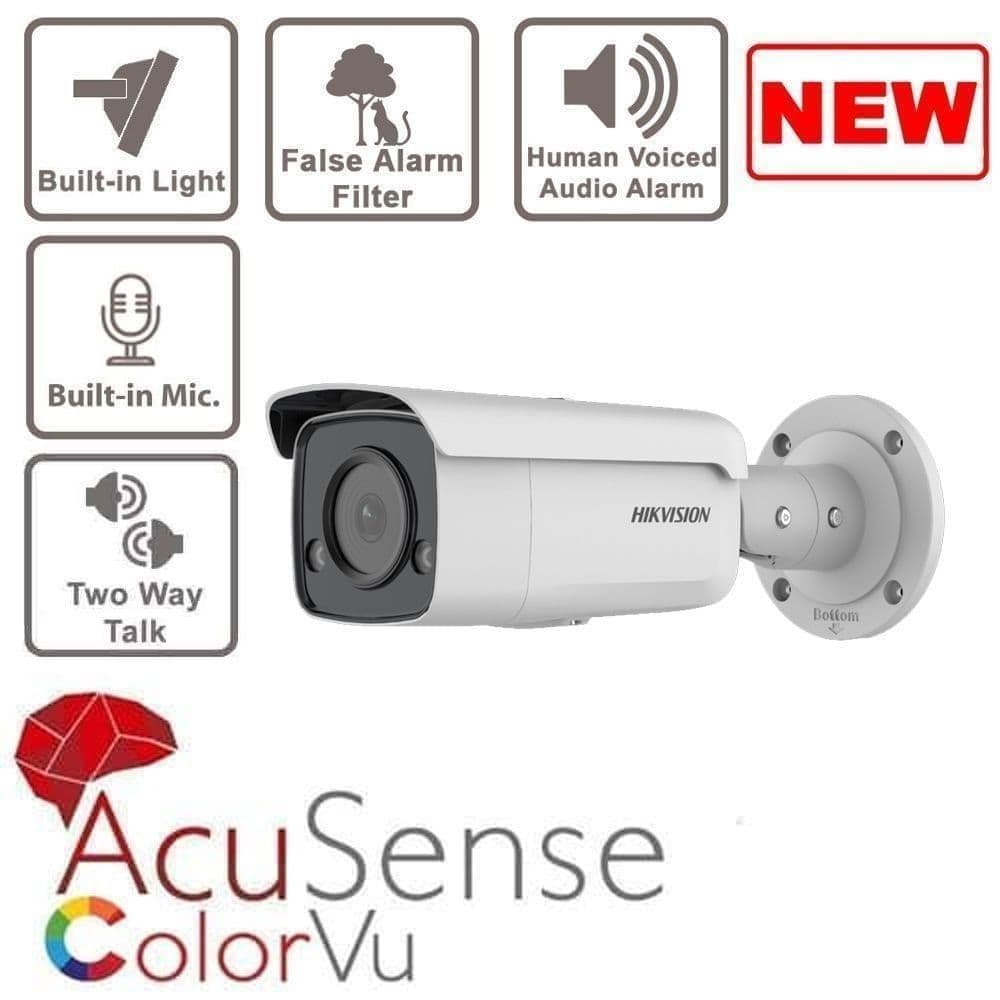

4MP DS-2CD2T47G2-LSU/SL ColorVu Fixed Bullet W/ Mic & Speaker- Two Way Audio
4MP DS-2CD2T47G2-LSU/SL ColorVu Fixed Bullet W/ Mic & Speaker- Two Way Audio

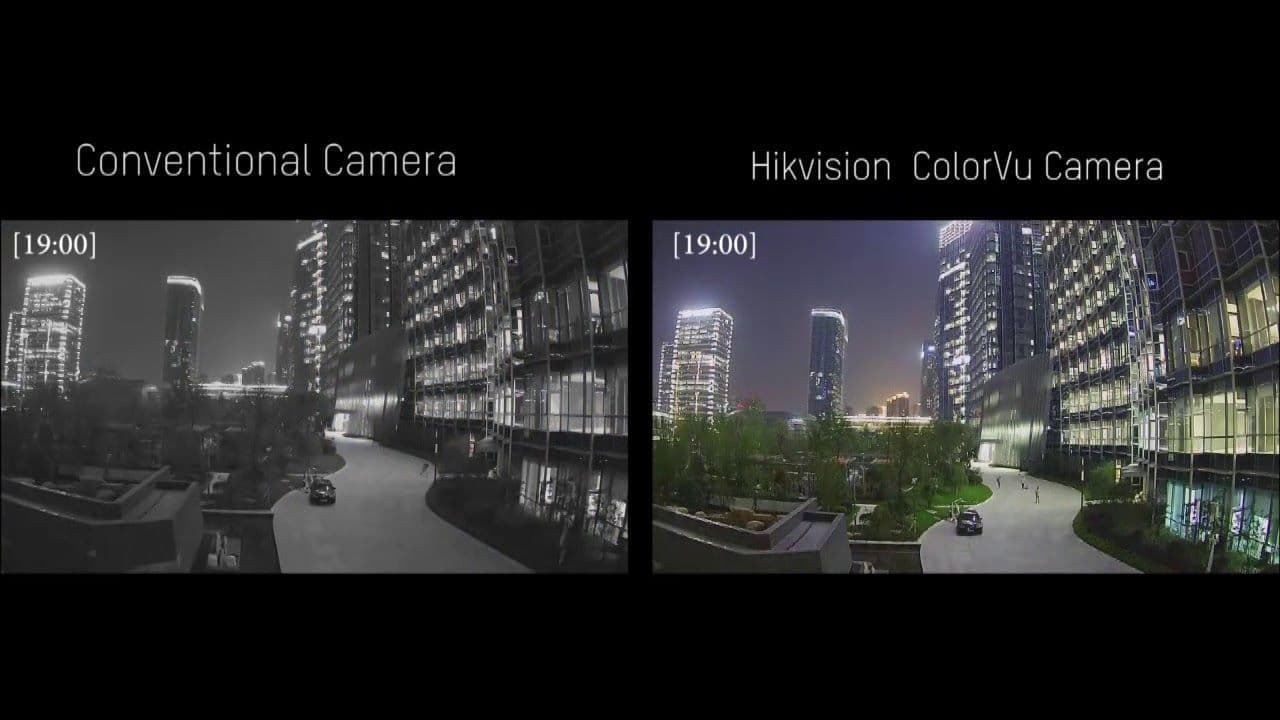

Hikvision ColorVu Technology helps cameras render vivid video 24/7, even in zero-light environments. ColorVu cameras feature advanced lenses with F1.0 aperture and high performance sensors that collect and utilise more light to produce brighter images. In zero-light scenarios, built-in environmentally-friendly supplement lighting works to guarantee colourful images.
AcuSense Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Features 5 Behaviour Analysis:
- Line Crossing Detection
- Intrusion Detection
- Object Removal Detection
- Unattended Baggage Detection
- Scene Change Detection
With an IP67 weather resistant housing and a working temperature of -30°C to +60°C this camera is ideal for outdoor use and can be used in a range of different applications such as; entrances to buildings, car parks, town centres etc. As well as this, the camera features a 3-axis design (Pan: 0°~360°, Tilt: 0°~90° and Rotate: 0°~360°) so users can easily mount and position the camera to cover the desired area.
These cameras feature a bright, white LED light which helps to provide excellent colour image at night. Please keep in mind that these LED lights are quite bright and remain switched on at low light levels until light levels increase. This may not be suitable for all users, especially those in close, residential areas.
Features
- High quality imaging with 4 MP resolution
- 24/7 full color imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67)
- Robust structure design with full metal materials
Specification
- Camera
- Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time 1/3 s to 1/100,000 s
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
-
Focal Length & FOV
2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.0
-
Depth of Field
2.8 mm: 3.1 m to ∞
4 mm: 5.4 m to ∞
6 mm: 12.1 m to ∞
- DORI
-
DORI
2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m
- Illuminator
- Supplement Light Type White light
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC) H.265 and H.264 encoding
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storage
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch Auto, Schedule
- Wide Dynamic Range (WDR) 130 dB
- SNR ≥ 52 dB
- Image Enhancement BLC, HLC, 3D DNR
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone Yes
- Built-in Speaker 2 W, 10 cm: 97 dB
-
Audio
1 input (line in), two-core terminal block , max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out),two-core terminal block , max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
Alarm
Visual alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key Yes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output
- Deep Learning Function
- Face Capture Yes
- General
-
Power
12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
- Dimension 289.5 mm × Ø105 mm (11.4"× Ø4.1")
- Package Dimension 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- Weight Approx. 1165 g (2.6 lb.)
- With Package Weight Approx. 1639 g (3.6 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
-
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 6, 2016;
KC: KN 32: 2015, KN 35: 2015
-
Safety
UL: UL 60950-1;
CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
LOA: IEC/EN 60950-1
-
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
