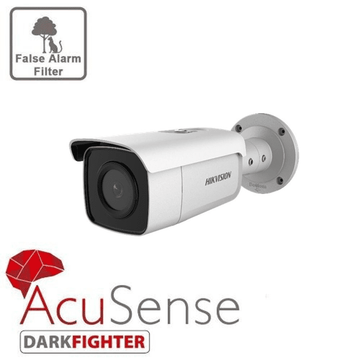

4MP DS-2CD2T46G2-4I AcuSense 80M IR Bullet Network Camera
Quick Overview
The Hikvision DS-2CD2T46G2-4I is a 4 megapixel bullet camera with powerful, built in supplement IR light reaching a distance of up to 80 metres. The camera is one of the latest to be released within Hikvisions Easy IP 4.0 AcuSense Range
AcuSense Technology has been developed to use deep learning algorithms to reduce false alarm notifications. Previously alarms would be falsely triggered by elements such as rain, foliage and wildlife. Now, with the AcuSense technology, the smart algorithms focus on targets such as vehicles and humans, greatly reducing the false alarms. This bullet camera can detect intelligent events such as Motion Detection, Line Crossing Detection and Tampering Alarms.
The DS-2CD2T46G2-4I has a rating of IP67 making it weather proof and perfectly suitable for use outside. The base is adjustable on three axis' allowing for the camera to be mounted to face almost any position. The camera also provides space for a Micro SD Card for on-board storage.
Users will experience high image quality even in challenging light scenarios thanks to technologies such as DarkFighter, 3D DNR, 120 dB true WDR.
We recommend using the H.265+ video compression to record footage. It has noticeably improved and increased storage and bandwidth usage since its release with no loss to image quality. It is also recommended to power the camera by PoE to reduce cable usage, however it is also possible to power the device with a 12V DC power supply unit (not included).
Specification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.4
- DORI
- DORI
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range
2I: Up to 60 m
4I: Up to 80 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
- Deep Learning Function
- Face CaptureYes
- General
- Power
2I:
12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
4I:
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
- DimensionØ105 mm × 289.5 mm (Ø4.1" × 11.4")
- Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- WeightApprox. 1075 g (2.4 lb.)
- With Package WeightApprox. 1584 g (3.5 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
LOA (IEC/EN 60950-1)
- EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
