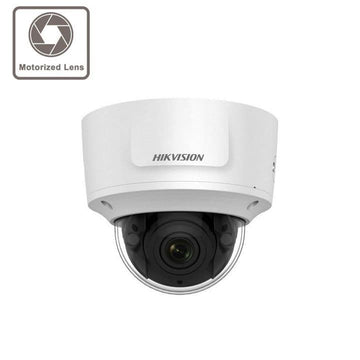

4MP DS-2CD2743G0-IZS Hikvision Motorised Zoom Dome Network Camera
4MP DS-2CD2743G0-IZS Hikvision Motorised Zoom Dome Network Camera
Hikvision DS-2CD2743G0-IZS 4MP Motorised Zoom Dome Network Camera - Recommended for internal Use
Description
The Hikvision DS-2CD2743G0-IZS is a 4MP dome camera with a 2.8mm - 12mm motorised zoom lens and built-in infra-red LEDs that are effective up to 30m. This camera is from Hikvision's brand new EasyIP 2.0+ range, launched in June 2018.
This camera is fitted with IP67 weatheproof housing and IK10 vandal resistant housing making it a great choice for outdoor applications. The DS-2CD2743G0-IZS can cover a wide area of interest with 3-axes adjust-ability and optional wall mount.
A range of features are used to improve mage quality: back light compensation (BLC), 3D digital noise reduction technology (3D DNR), wide dynamic range (WDR) and region of interest (ROI).
Furthermore, a range of built-in smart features are used to imrprove security even further: motion detection, line crossing detection and intrusion detection.
The DS-2CD2743G0-IZS has an optional SD card slot and uses H.265+ compression to greatly reduce bandwidth and storage needs. This camera can be powered with a 12VDC power supply or by PoE.
Features
- 4MP resolution
- 2560 X 1440
- Motorised zoom lens
- 120dB WDR
- Audio/Alarm I/O
- 30m IR range
- IP67 rated weatherproof housing
- IK10 rated vandal proof housing
- 128GB micro SD card slot
- Max frame rate 25 fps
- Back light compensation
- 3D Digital noise reduction technology
- Region of interest
- Line crossing detection
- Intrusion detection
- H.265, H.265+ codec
Specification
- Camera
- Image Sensor 1/3" Progressive Scan CMOS
- Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Day &Night IR Cut Filter
- Wide Dynamic Range 120dB
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- DNR 3D DNR
- Lens
- Lens 2.8 to 12 mm
- Auto-Iris No
- Aperture F1.6
- Focus Auto
- FOV horizontal FOV: 104° to 29°,vertical FOV: 55° to 17°,diagonal FOV: 125° to 34°
- Lens Mount Φ14
- Lens Type Motorized
- Illuminator
- IR Range Up to 30 m
- Wavelength 850nm
- Decoding
- Audio compression G722.1/G.711/G726/MP2L2/PCM/MP3
- Video
- Max. Resolution 2688 × 1520
-
Main Stream
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- Video Bit Rate 32 Kbps to 16 Mbps
- SVC H.264 and H.265 encoding
- Audio
- Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Smart Feature-Set
- Smart Event Line crossing detection, intrusion detection, face detection
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Image
- Image Enhancement BLC/3D DNR/HLC
- Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
- Wi-Fi
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network
- Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Simultaneous Live View Up to 6 channels
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Firmware Version 5.6.3
- Interface
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Audio 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output 1Vp-p Composite Output(75Ω) (For adjustment only)
- On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Approval
- Impact Protection IK10
- Compression Standard
- H.264+ Main stream supports
- H.265+ Main stream supports
- Smart Feature-set
- Face Detection Yes
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Reset Yes
- Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, terminal block,PoE (802.3af, class 3)
- Power Consumption and Current 12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W
- Material Metal
- Dimensions Φ 153.4 × 133.1 mm (Φ 6.0" × 5.2")
- Weight Camera: Approx. 1330 g (2.9 lb.),With Package: Approx. 1800 g (4.0 lb.)
- Interface Protection IP66
