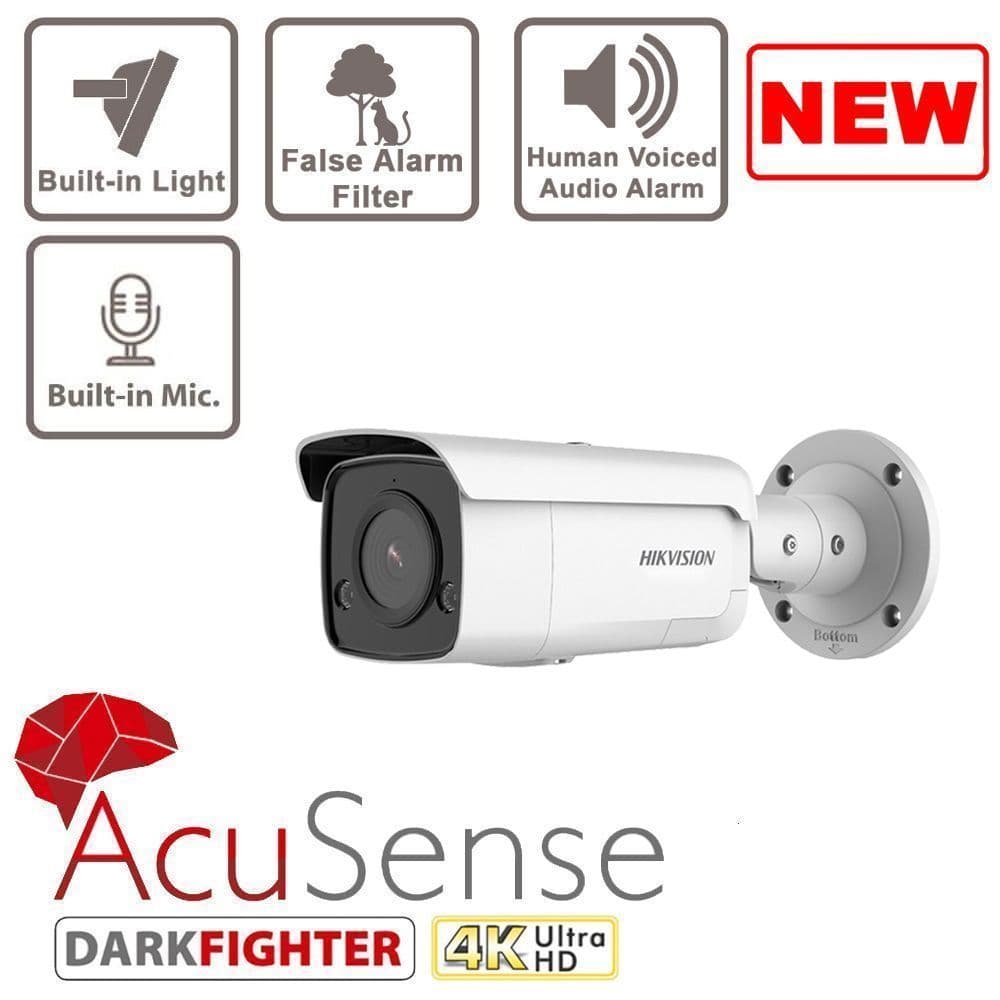

4MP DS-2CD2646G2-IZSU/SL AcuSense 60M IR Bullet Surveillance Camera
AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or
vehicles, vastly improving alarm efficiency and effectiveness.
Features
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
False alarm reduction through human and vehicle target classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Water and dust resistant (IP66) and vandal resistant (IK10)
Specification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Max. Resolution2688 × 1520
- Lens
- Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
- Iris TypeFixed
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
- ApertureF1.4
- Lens MountØ14
- DORI
- DORI
2.8 to 12 mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 60 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- Interface
- Alarm 1 input, 1 output (max. 12 VDC/24 VAC, 1 A)
- Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), 3.5 mm terminal block, output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Built-in MicrophoneYes
- Built-in SpeakerPower: 2 W. Max. sound pressure level: 10 cm: 97 dB.
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventScene change detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light
- Deep Learning Function
- Face CaptureYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- General FunctionHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- MaterialAluminum alloy body
- DimensionØ144 mm × 342.6 mm (Ø5.7" × 13.5")
- Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
- WeightApprox. 1355 g (3.0 lb.)
- With Package WeightApprox. 2011 g (4.4 lb.)
- Power
12 VDC ± 25%, 1.21 A, max. 14.5 W,two-core terminal block,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 18 W
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), IK 10 (IEC 60529-2013)
