4MP DS-2CD2347G2-LU/B ColorVu Fixed Turret Network Camera 2.8MM
4MP DS-2CD2347G2-LU/B ColorVu Fixed Turret Network Camera 2.8MM

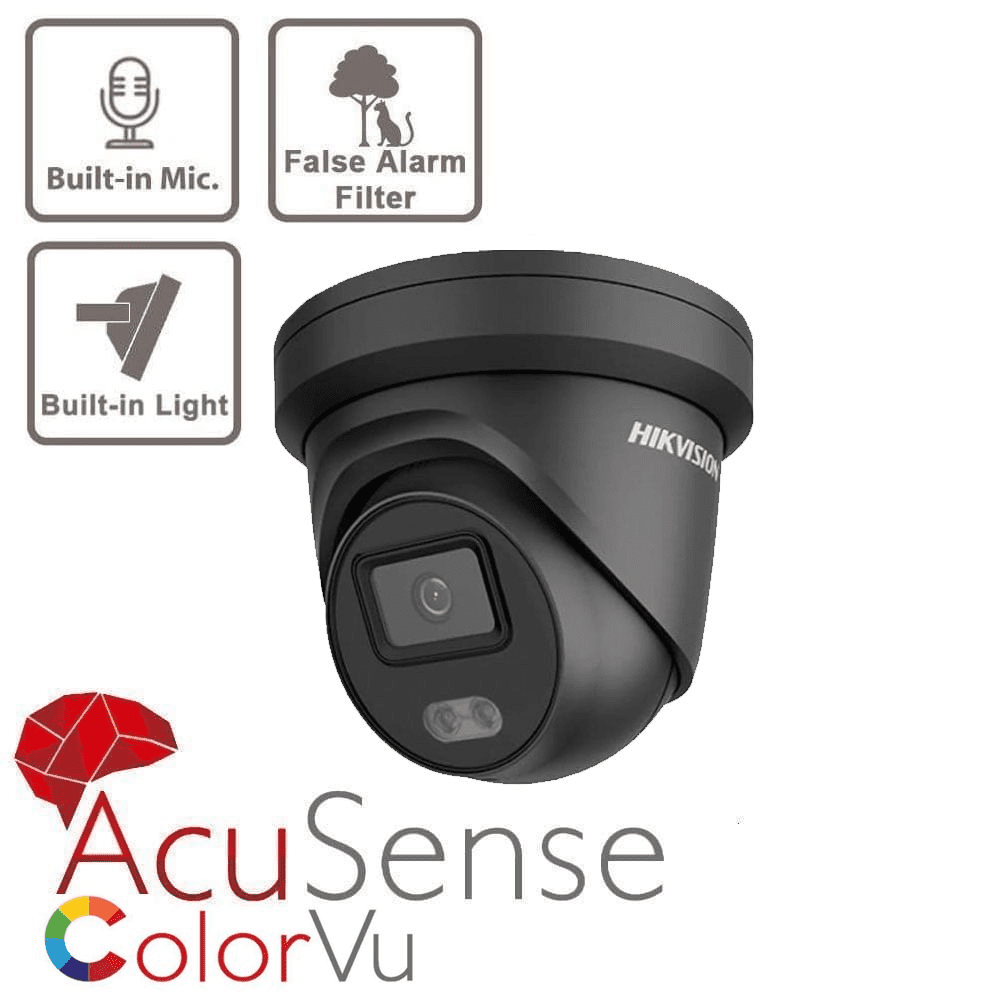

The Hikvision DS-2CD2347G2-LU is a 4MP ColorVu turret network camera suitable for indoor our outdoor use and featuring a built in microphone.
ColorVu Technology works to provide full colour images 24/7. The camera is able to achieve this with a large iris, high-performance sensor and built-in white LED supplement lighting.
The DS-2C2347G2-LU now also draws from the same deep learning algorithm that is featured in AcuSense technology. This enables the camera to focus on human and vehicle classification and reduce the occurrence of false alarms.
Features
- Line Crossing Detection
- Intrusion Detection
- Object Removal Detection
- Unattended Baggage Detection
- Scene Change Detection
- Face Detection
Armed with enhancing features such as; 120dB wide dynamic range (WDR), high light compensation (HLC) 3D digital noise reduction (3D DNR) and back light compensation (BLC), the DS-2CD2347G2-LU gives users a high quality, detailed images 24/7.
With a working temperature of -30 °C to +60 °C, IP67 weather-proof housing, a panoramic & rotation movement of 360° and a tilt of 75°, this is perfect for outdoor use, although it can be for indoor use too.
Features
- Built-in microphone
- 12 VDC & PoE (802.3af, class 3).
- 120dB WDR.
- BLC/3D DNR/HLC/ROI.
- H.265+, H.264+.
- Built-in micro SD/SDHC/SDXC slot, up to 128G.
- Max. 2688 × 1520 @ 25fps.
- 0.0005 @ (F1.0, AGC ON), 0 Lux with Light
Specification
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time1/3 s to 1/100,000 s
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
- Lens MountM16
- Iris TypeFixed
- ApertureF1.0
- Depth of Field
2.8 mm, 2.5 m to ∞
4 mm, 3.5 m to ∞
6 mm, 7.5 m to ∞
- DORI
- DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-U: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone-U: Yes
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
- Deep Learning Function
- Face CaptureYes
- General
- Power
12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
- DimensionØ138.3 mm × 125.2 mm (Ø5.4" × 4.9")
- Package Dimension170 mm × 170 mm × 150 mm (7" × 7" × 5.9")
- WeightApprox. 750 g (1.7 lb.)
- With Package WeightApprox. 1055 g (2.3 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
