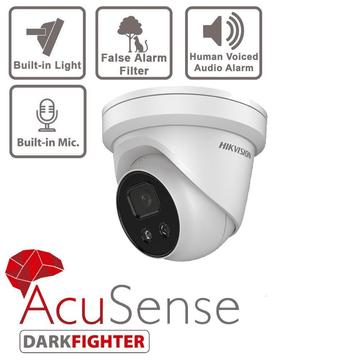

4MP DS-2CD2346G2-ISU/SL AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
4MP DS-2CD2346G2-ISU/SL AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
Please note - The talk back feature will only work through a I series recorder. If you wish to make this work through a K Series recorder you will have to add the Camera to the Network via a POE switch or a 12V DC + Ethernet switch, after this you will have to add the cameras to the recorder via the network (Hikvision do not guarantee two way audio with the K series recorder unless you add the cameras separately onto HIKconnect as standalone cameras)
DS-2CD2346G2-ISU/SL is the latest addition to Hikvision's AcuSense range. The 4 megapixel turret camera uses deep learning algorithms to reduce false alarms, typically generated by foliage, insects or pets. This means that alarm efficiency is vastly improved when targeting humans and vehicles.
Powered by Darkfighter technology the DS-2CD2386G2-I performs extremely well in low light conditions with an IR range of up to 30 meters. The camera also uses technology such as WDR (Wide Dynamic Range) to provide a clear image against a strong backlight.
This camera can be powered by PoE or with a 12V DC power supply, we normally recommend PoE for ease of installation.
FEATURES:
- 4MP high resolution
- 2.8mm fixed lens
- Powered by Darkfighter for Ultra Low Light
- 3 axis Mount
- Up to 30m IR distance
- H.265+ compression
- 6 analytics
- IP66 weatherproof
- 120dB wide dynamic range
- Supports on board storage (up to 256GB)
- Built-in microphone for real-time audio security
- Built-in speaker
- Active strobe light and audio alarm to warn intruders off
- 12V DC & PoE (802.3af)
Specification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.4
- DORI
- DORI
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR WavelengthYes
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 512 GB
- Built-in MicrophoneYes
- Built-in SpeakerPower: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
- Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart EventScene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email
- Deep Learning Function
- Face CaptureYes
- General
- Power
12 VDC ± 25%, 0.65 A, max. 7.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3 , 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W
- DimensionØ138.3 mm × 124.5 mm (Ø5.4" × 4.9")
- Package Dimension170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")
- WeightApprox. 825 g (1.8 lb.)
- With Package WeightApprox. 1120 g (2.5 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);
LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
